Mercury outboard parts drawings * Tech video

Lower unit Mercury - Mariner outboard parts layouts for help
3.9 to 250 horsepower gear-case and water pump repairs

  • Lower unit Mercury / Mariner parts

Search by part number or description here

Click diagram for large view

Mercruiser / Mariner / Mercury water pump removal and repair video with Illustrations and procedural steps to repair the lower gearcase.
Video show tools and GLM parts required to make the repair.

Mercury 2 Stroke 3.9, 4, 4.5, 6, 7.5 and 9.8 hp

Mercury 2 Stroke 3.9, 4, 4.5, 6, 7.5 and 9.8 hp

Lower unit parts layout with larger exploded diagram and photos. 2 Stroke 3.9, 4, 4.5, 6, 7.5 and 9.8 horsepower for 2 cylinder outboard motors.

4 hp. one cylinder years 1982-1986
USA. 5595532-OA809600
AUS.8068065 up
BEL.9258281-9477829
CAN.7143688 up

4.5 hp. one cylinder years 1975-1979
USA. 4107220 & up
AUS.8026540 up
BEL.9072179 up
CAN.7045758 up

7.5 hp. (75) year 1978
USA. 4851693 up
AUS.8051350 up
BEL.9181726 up
CAN.7111898 up

9.8 hp. (110) years 1979-1985
USA. 4839254 up
AUS.8050625 up
BEL.9165303 up
CAN.7111348 up

Mercury parts drawing 6-8-9.9-10-15 hp

Mercury parts drawing 6-8-9.9-10-15 hp

6, 8, 9.9, 10 and 15 hp. drawings with photos of lower unit parts for use with 1 or 2 cylinder two stroke outboards.

6 hp.
USA OA197112 and up
BEL 9461526 and up

8 hp.
USA. OA197112 and up
BEL. 9461526 and up

8 hp. 4 Stroke Bodensee
USA OG760300 and up

8 hp. 4 Stroke Bodensee
USA. OH017100 - OH017349

9.9 hp.
USA. OA197112 and up
BEL. 9461526 and up

9.9 hp. 4 Stroke
USA. OG760300 and up

9.9 hp. 4 Stroke
USA. OH000058 - OH016909

XR10 / Sea Pro

10 hp. Magnum and Marathon
USA. OD038000 and up
BEL. 9596000 and up

15 hp.
USA. OB292414 and up
BEL. 9542620 and up

15 hp. Sea Pro Marathon
USA. OG044365 and up
BEL. 9927000 and up

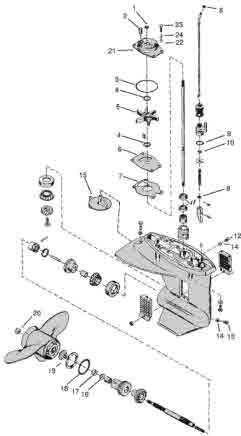

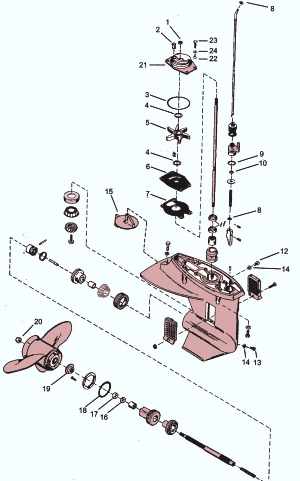

Mercury 18XD 20-25 hp. drawing
18XD-20-25 hp.
18XD, 20 and 25 horsepower lower unit with 2 cylinder two stroke outboard components.

18 hp. (18XD) years 1984-1985
USA. 6443973 up
BEL. 9378151 up
CAN. 7209533 up

20 hp. (20, 20XD) years 1987-1987
USA. 6443973 up
BEL. 9415101 up
CAN. 7209533 up

25 hp. (25, 25XD) year 1983 and 1/2 of 1984
USA. 6416713 up
BEL. 9378116 up
CAN. 7207858 up

25 hp. Lightning 3 cylinder year 1997
USA. OE268781 up

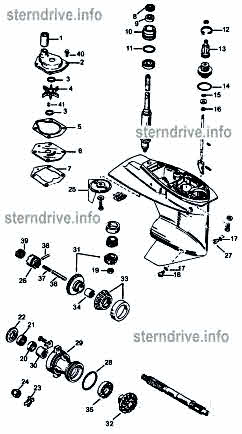

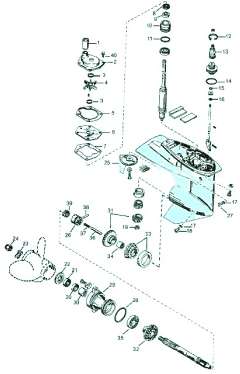

outboard parts 25-30-40-50 hp 2-3 cylinder

Mercury parts drawing 25, 30, 40 and 50 hp

Lower unit exploded view with photos. 4 stroke 25 hp.
30 hp. lower unit with 2 cylinder two stroke outboards.
40 and 50 hp. 2 or 3 cylinder two stroke engines.

25 hp. 4 Stroke year 1998
USA. OG590000 up

30 hp. 2 cylinder 644cc years 1994-1998
USA. 053314 up

40 hp. 2 cylinder 644cc years 1994-1998
USA. OG053314 up

40 hp. 3 cylinder years 1997-1998
USA. OG531301 up
BEL. 9973100 up

40 hp. 4 Stroke Non Big Foot year 1998
USA. OG231123 up

45 hp. Bodensee 4 Stroke Non Big Foot years 1996-1998
USA. OG231123 up

50 hp. 3 cylinder years 1991-1995
USA. OG590000 up
BEL. 9973100 up

50 hp. 4 Stroke Non Big Foot years 1995-1998
USA. OG231123 up

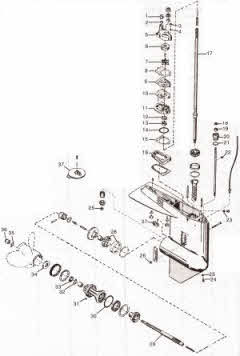

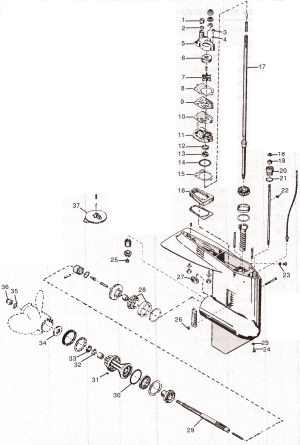

Mercury outboard parts 35 to 70 hp

Mercury outboard parts
35 to 70 hp

Exploded view parts drawing with photos for 35 to 70 hp. Mercury parts illustrations for troubleshooting.

35 hp. 2 cylinder
USA. 6445653 up
BEL. 9384476 up
CAN. 7209608 up

40 hp. (40, 402) 2 cylinder
USA. 4860103-OG053313
AUS. 8052125 up
BEL. 9184451 up
CAN. 7112423 up

40 hp. 4 cylinder
USA OC159200 up
BEL. 9570790 up
USA. 5531630 up
AUS. 8063985 up
BEL. 9248006 up
CAN. 7143688 up

50 hp. 500 4 cylinder
USA. 4357640 up
CAN. 7068998 up
AUS. 8030090 up
BEL. 9107214 up

50 hp. 3 cylinder
USA 6428681-OD000749
BEL. 9385911-9683054
CAN. 7208333 up

60 hp. 3 cylinder
USA. 6428681-OD000749
BEL. 9385911-9683054
CAN. 7208333 up

70 hp. 3 cylinder
USA. 4571652-OA996141
AUS. 8042350 up
BEL. 9135825-9385910
CAN. 7087823-7208332

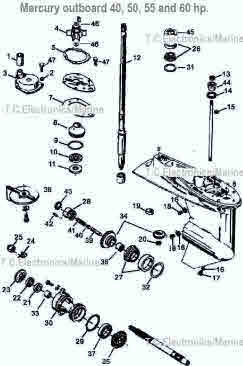

Mercury outboard parts 40, 50, 55 and 60 hp

Mercury outboard parts 40, 50, 55 and 60 hp

Illustration with photos 50, 55 and 60 horsepower three cylinder 2 stroke illustrations. 40, 50 and 60 hp. EFI 4 cylinder 4 stroke powerhead with exploded view.


25 hp. 4 Stroke year 1998
USA. OG590000 up

30 hp. 2 cylinder 644cc years 1994-1998
USA. 053314 up

40 hp. 2 cylinder 644cc years 1994-1998
USA. OG053314 up

40 hp. 3 cylinder years 1997-1998
USA. OG531301 up
BEL. 9973100 up

40 hp. 4 Stroke Non Big Foot year 1998
USA. OG231123 up

45 hp. Bodensee 4 Stroke Non Big Foot years 1996-1998
USA. OG231123 up

50 hp. 3 cylinder years 1991-1995
USA. OG590000 up
BEL. 9973100 up

50 hp. 4 Stroke Non Big Foot years 1995-1998
USA. OG231123 up

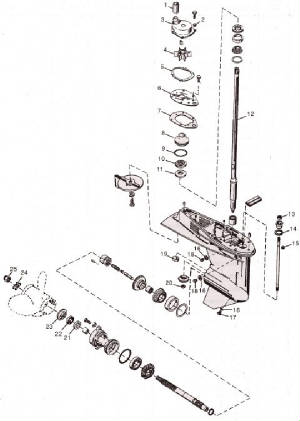

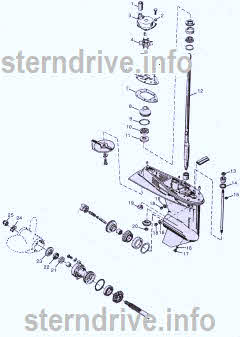

Mercury outboard motor 3 cylinder 50-55-60 hp

Mercury outboard motor 3 cylinder 50-55-60 hp

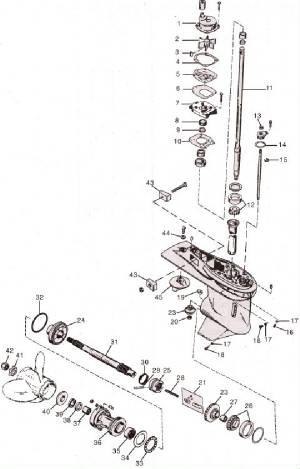

4.250 inch torpedo diameter big foot Lower gearcase components for 30 to 125 horsepower 3 or 4 cylinder powerheads

50 hp. 3 cylinder
USA OD000750 - OG589999
BEL 9683055 - 9973099

55 hp. 3 cylinder
USA OD000750 and up
BEL 9741042 and up

60 hp. 3 cylinder Standard
USA OD000750 and up

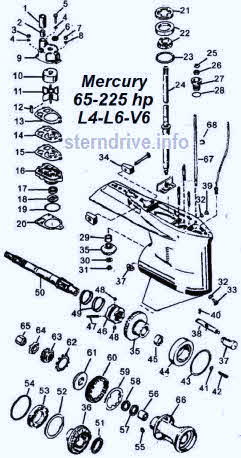

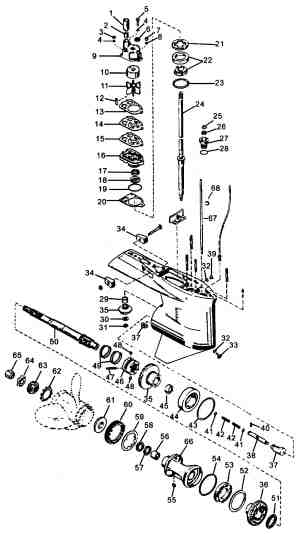

Mariner lower unit 65-225 hp L4-V6

Mariner lower unit 65-225 hp L4-V6

65 to 225 hp. diagram 4 stroke 225 horsepower lower unit.
L4, L6 and V-6 lower gearcase components

75 hp. 4 cylinder
USA. 6432901 up
BEL. 9393856 up
CAN. 7208573 up

80 hp. 800, 4 cylinder
USA. 4831999 - 6432900
AUS. 8050200 up
BEL. 9177626 - 9393855
CAN. 71109 - 7208572

90 hp. 900, 6 cylinder
USA. 4845301 up
CAN. 7111698 up
AUS. 8060545 up

115 hp. 1150, 6 cylinder
USA. 4855153 up
AUS. 8051950 up
CAN. 711248 up

140 hp. 1400 6 cylinder
USA. 4865678 up
AUS. 8052650 up
CAN. 7112773 up

V-150 hp. 1500
USA. 4868998-OA904645

V-175 hp. 1750
USA. 4301235 - 6618750
AUS. 8058870 up

V-200 hp. 2000
USA. 4839034 - 6625220
AUS. 8061595 up

V-225 hp.
USA. 5628028 up

Mercury outboard parts 200, 225 and 250 hp

Mercury outboard parts 200, 225 and 250 hp

lower unit outboard for 225 Horsepower with carburetor type, 225 and 250 hp. EFI.

V-200 hp. DFI 3.0 liter
USA. OG386496 up

V-225 hp. 3.0 liter with C-2 Casting
USA. OD280813 up

V-225 hp. 3.0 liter Sea Pro Marathon
USA. OG245605 up

V-225 hp. EFI 3.0 liter
USA. OG129222 up

V-225 hp. DFI 3.0 liter
USA. OG590000 up

V-250 hp. EFI 3.0 liter
USA. OG129222 up

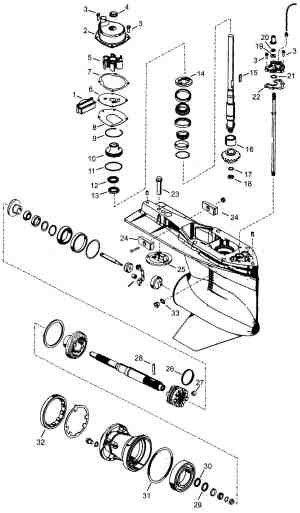

Mercury 4 stroke Verado inline 6 year 2005 and up

Mercury 4 stroke Verado inline 6 year 2005 and up

Lower unit components for Mariner/Mercury outboard for 4 stroke Verado in-line 6 cylinder. Years 2005 and up.

135 hp. Verado
USA. 1B227000 and up

150 hp. Verado
USA. 1B227000 and up

175 hp. Verado
USA. 1B227000 and up

200 hp. Verado
USA. 0T980000 and up

225 hp. Verado
USA. 0T980000 and up

250-275 hp. Verado
USA. 0T980000 and up

275 hp. Verado
USA. 0T980000 and up
