Mercury layout 30 to 125 hp. *3 and 4 cylinder

GLM Marine aftermarket parts and lower unit drawing for 30 to 125 hp. powerheads

  • 2 and 4 stroke with 4.250 inch (107.95 mm) torpedo outside diameter big foot
  • Lower gearcase components for 30 to 125 horsepower 3 or 4 cylinder powerheads
  • Lower unit parts chart below identifies Mercury outboard motor parts and GLM aftermarket order numbers
  • Technical breakdown for easy part identification

Search by part number or description here

This site  The Web

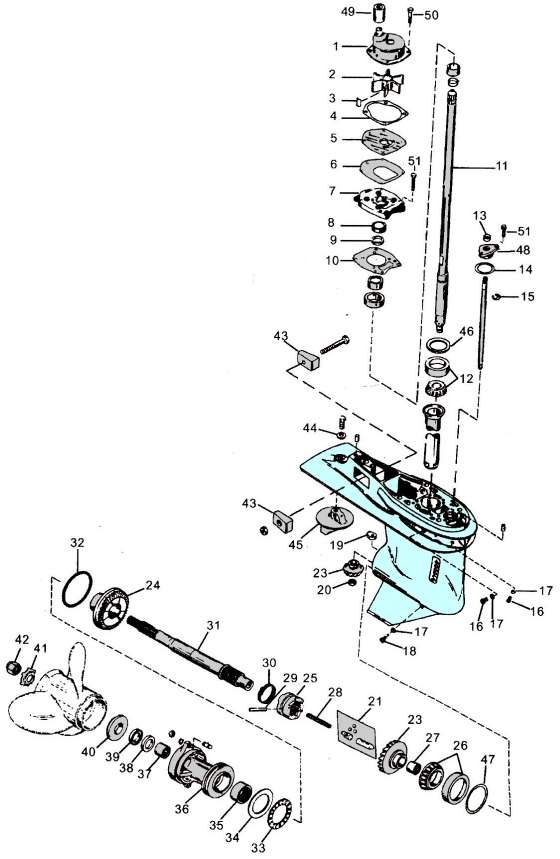

lower unit drawing 30 - 125
lower unit drawing 30 - 125

12094
12094

P/N 12094 OEM 46-43024A7 $83.89

12094

40 hp. 4-Stroke Bigfoot
USA. OG231123 and up

45 hp. 4 Stroke Bigfoot, Bodensee B.F.
USA. OG231123 and up

50 hp. 4 Stroke,Bigfoot
USA. OG231123 and up

60 hp. 3 cylinder Bigfoot
USA. OD00750 and up
BEL. 9683055 and up

65 hp. Jet
USA. OD283222 and up
BEL. 9793577 and up

70 hp. 3 cylinder
USA. OA996142 and up
BEL. 9483121 and up

75 hp. 3 cylinder
USA. OC222000 and up
BEL. 9589039 and up

80 hp. 3 cylinder
USA. OA996142 and up
BEL. 9483121 and up

80 hp. Jet
USA. OD283222 and up
BEL. 9793577 and up

90 hp. 3 cylinder
USA. OA996142 and up
BEL. 9483121 and up

100 hp. 4 cylinder
USA. OB209468 and up
BEL. 9523034 and up

115 hp. 4 cylinder
USA. OC100000 and up
BEL. 9559771 and up

125 hp. 4 cylinder
USA OD283222 and up
BEL 9793577 and up

12043 Impeller kit
12043 Impeller kit

P/N 12043 Water pump impeller kit $00.00


12096
12096

P/N 12096 Water pump kit OEM 817275A6 $00.00


12098
12098

12098

1998 V-200 DFI 3.0 liter

1998 V-225 DFI
USA serial number OG590000 and up

87590 outboard seal kit
87590 outboard seal kit

P/N 87590 OEM 26-43035A4 $39.00

50 hp. 4 Stroke (Big Foot)
USA. OG231123 up

60 hp. 3 cylinder Big Foot
USA. OD000750 up
BEL. 9683055 up

70 hp. 3 cylinder
USA. OA996142 up
BEL. 9483121 up

75 hp. 3 cylinder
USA. OC222000 up
BEL. 9589039 up

80 hp. 3 cylinder
USA. OA996142 up
BEL. 9483121 up

90 hp. 3 cylinder
USA. OA996142 up
BEL. 9483121 up

100 hp. 4 cylinder
USA. OB209468 up
BEL. 9523034 up

115 hp. 4 cylinder
USA. OC100000 up
BEL. 9559771 up

125 hp. 4 cylinder
USA. OD283222 up
BEL. 9793577 up



Item 1

P/N 12416 Water pump housing OEM 817275A2 $54.29

89630 impeller
89630 impeller
Item 2
P/N 89630 impeller OEM 47-43026T2 $17.89

11071
11071
Item 3
P/N 11071 Water pump key OEM 28-430737 $4.89


Item 4
P/N 31240 Water pump gasket OEM 27-8172771-1 $4.89


Item 5
P/N 12500 Water pump plate OEM 817267-1 $5.89


Item 6
P/N 30090 Water pump gasket OEM 27-43033-1 $4.89


Item 7
P/N 12342 Water pump base assembly OEM 43055A4 $74.89


Item 8
P/N 85170 Oil seal OEM 26-43036 $8.89


Item 9
P/N 43055A4 Lower unit oil seal OEM 26-43035 $8.89


Item 10
P/N 30320 Water pump gasket 26-43035 $13.89



Item 11
P/N 11160 Drive shaft,long. OEM 45-43031A1 $461.89



Item 11A
P/N 11164
Drive shaft, long. OEM 45-826736A1 $428.89



Item 12
P/N 22960 Lower unit bearing OEM 31-42677A1 $28.89

85581 oil seal
85581 oil seal

Item 13
P/N 85581 Oil seal OEM 26-816464-1 $7.89



Item 14
P/N 81275 O-rings, 5 units. OEM 25-45710 $9.89



Item 15
P/N 21136
Retaining rings, 2 units. OEM 53-29641 $4.89



Item 16
P/N 22420
Screw set OEM 10-79953Q2 $4.89

31170 Gasket
31170 Gasket

Item 17
P/N 31170
Gaskets, 5 units OEM 12-19183-3 $4.89

21731 drain screw magnetic
21731 drain screw magnetic

Item 18
P/N 21731
Drain screw set OEM 22-67892A1 $5.89

11184
11184

Item 19
P/N 11184 Shift cam, 3 jaw. OEM 76039-4 $17.89



Item 19A
P/N 11185 Shift cam, 6 jaw. OEM 760307 $19.89

11190 pinion nut
11190 pinion nut

Item 20
P/N 11190
Lower unit pinion nut OEM N/A $4.89

11182 Cam follower kit
11182 Cam follower kit

Item 21
P/N 11182 Cam follower kit OEM 850315A1 $25.89



Item 22
P/N 22492 Ball OEM 30-44530 $4.89

11560 Pinion and forward gear
11560 Pinion and forward gear

Item 23

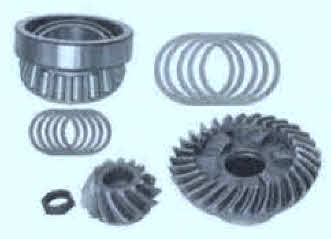

P/N 11560 Pinion and forward gear set with 2.31 gear ratio for 3 jaw OEM 43-803500T1 $438.89

11565
11565

Item 23
P/N 11565 Pinion and forward gear set with 2.31 gear ratio for 6 jaw OEM43-803501T1 $394.89

11570
11570

Item 24
P/N 11570 Reverse gear 3 jaw OEM 43-12635T $211.89

11575
11575

Item 24
P/N 11575 Reverse gear 6 jaw OEM 43-850034T $234.89

11061
11061

Item 25
P/N 11061 Lower unit clutch dog 3 jaw OEM 52-822539T $143.89

11063
11063

Item 25
P/N 11063 Lower unit clutch dog 6 jaw OEM 52-850048T $152.89

21820
21820

Item 26

P/N 21820 Lower unit bearing OEM 31-30894A1 $27.89

11420
11420

Item 27
P/N 11420 bearing OEM 31-30895 $9.89

11034
11034

Item 28
P/N 11034 spring, for 3 jaw clutch. OEM 24-30622 $4.89



Item 28
P/N 11036 spring, for 6 jaw clutch OEM 24-850327 $4.89

21131
21131

Item 29

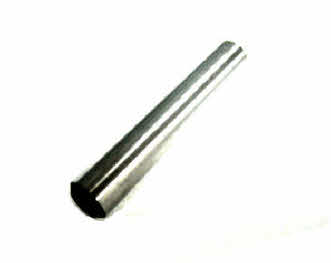

P/N 21131 Cross pin OEM 17-30632 $4.89

11050
11050

Item 30

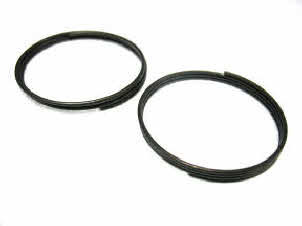

P/N 11050 springs, 2 units. OEM 24-30893 44.89



Item 31
P/N 11153 propeller shaft, prop 3 jaw clutch. OEM 44-12238T $384.89



Item 31
P/N 11155 propeller shaft, prop 6 jaw clutch. OEM 44-850308 $401.89



Item 32

P/N 82390 O-ring 5 units OEM 25-97386 $14.89



Item 33
P/N 22750 Thrust bearing OEM 31-12576 $13.89



Item 34
P/N 21653 thrust washer lower unit OEM 12-12577 $5.89



Item 35
P/N 22760 bearing OEM 31-12578T $16.89



Item 36
P/N 11412 Bearing carrier OEM 12596T2 $132.89

11410
11410

Item 37
P/N 11410 Bearing OEM 31-30956 $9.89

85130 Oil seal
85130 Oil seal

Item 38
P/N 85130 Oil seal OEM 26-76868 $8.89



Item 39
P/N 85530 Oil seal OEM 26-70081 $10.89



Item 40
P
/N 21350 Thrust hub OEM 13191A1 $16.89

21200
21200

Item 41
P/N 21200 Tab washer OEM 14-816620Q $4.89



Item 42
P
/N 21230 prop nut OEM 11-827614 $6.89



Item 43
P/N 12675 Anode OEM 826134Q $6.89

28420
28420

Item 44
P/N 28420 Washer OEM 12-45176 $4.89

12670 anode
12670 anode

Item 45
P/N 12670 Trim tab OEM 31640Q4 $9.89



Item 46
P/N 23222 Shim set OEM 15-44492A1 $4.89

23221
23221

Item 47
P/N 23221 Shim set OEM 15-44491A1 $5.89



Item 48
P/N 21024 Bushing assembly OEM 23-43052A4 $22.89



Item 49
P/N 85180 Water tube seal, white. OEM 43023 $4.89



Item 49
P/N 85190 Water tube seal, black. OEM 43023-2 $4.89



Item 50
P/N 23234 Screw OEM 10-826844-30 $4.89



Item 51
P/N 23235 Screw OEM 10-826844-25 $4.89
