Mercury outboard water pump V6-250 hp. P/N 12414

GLM products aftermarket water pump with impeller
for V-6 200, 225 and 250 hp.

  • Mercury /Mariner water pump with key and impeller
  • OEM 817275T4
  • V-6 200, 225 and 250 hp.
  • Exploded view outboard drawings click here
  • Sierra 18-3147

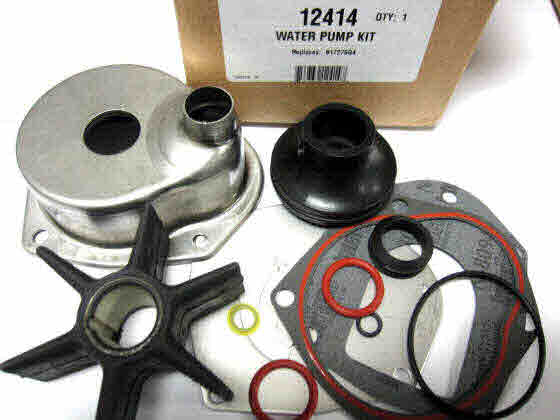

12414 Water pump kit

12414 Mercury water pump kit

P/N 12414 Water pump kit with key and impeller $109.95

OEM 817275T4

P/N 12414
V-6 200, 225, 250 hp.
OEM 817275T4
Sierra 18-3147

Included:

P/N 82210 o ring 25-21836
P/N 82150 o ring 25-35027
P/N 85590 face seal 26-816575A2
P/N 12413 pump housing
P/N 89630 impeller 47-43026T2
P/N 11071 key 28-43037
P/N 31240 GASKET 27-817277-1
P/N 12500 wear plate 817276-1
P/N 30090 gasket 27-43033-1
P/N 12341 pump base 807929A1
P/N 31170 gasket 12-19183-3 kit (2)
P/N 82115 o ring 25-21836 (2)
