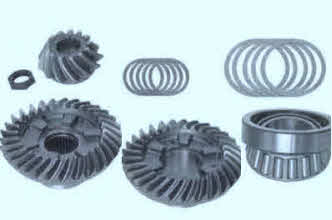

Mercury outboard gear set and clutch dog

GLM aftermarket parts clutch dog / gear sets 40 - 225 hp.

  • Mariner, Force and Mercury gear set and clutch dogs for use with 60 - 225 hp. motors
  • Includes forward bearing and shims. See our application chart for compatibility
  • Wear on a clutch dog can cause problems when shifting between neutral and forward. Be sure to inspect both clutch and forward.

Exploded view gearcase drawings
Search by part number or description here

11442
11442

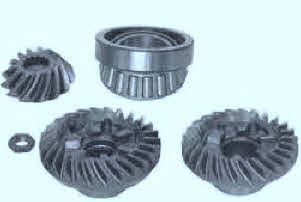

P/N 11442 Forward, pinion and reverse with pinion nut and 2 sets of shims #43-803497T1 and #43-79158T $431.95

11452
11452

P/N 11452 Forward / Pinion with bearing and shims #43-803497T1 $321.95

11462 Reverse
11462 Reverse

P/N 11462 Reverse #43-79158T $201.95

Note inline 40,45 and 50 hp. with 2.0 : 1 ratio and pinion gear has 13 teeth (13:26)

4 cylinder

40 hp. 1989-Up
USA OCl59200 and Up
BEL 9570790 and Up

45 hp. 1986
USA 5531630 and Up
AUS 8063985 and Up
BEL 9248006 and Up
CAN 7143688 and Up

50 hp. 1980-85
USA 5531630 and Up
AUS 8063985 and Up
BEL 9248006 and Up
CAN 7143688 and Up

11444 40-50 hp
11444 40-50 hp

P/N 11444 Forward, pinion and reverse with pinion nut #43-803498T1 and #43-822163T1 $476.95

11454
11454

P/N 11454 Pinion and forward gear #43-803498T1 $220.95

11464
11464

P/N 11464 Reverse 6 jaw without thrust spacer 43-822163T1 $210.95

Note 40 and 50 hp. with 1.83 : 1 ratio and pinion has 12 teeth (12:22)

3 cylinder

40 hp.
years 1991 to 1995
USA 0G531301 and Up
BEL 9973100 and Up

50 hp.
years 1994 to 2000
USA 0G590000 and Up
BEL 9973100 and Up

11552 3 cylinder 50-55-60 hp
11552
50-55-60 hp

P/N 11552 Forward, pinion and reverse with pinion nut 43-803499T1 and 43-813695T $505.95

11562
11562

P/N 11562 Pinion forward gear set #43-803499T1 $343.95

11572
11572

P/N 11572 Reverse #43-813695T $181.95

Note 50, 55 and 60 hp. with 1.64 : 1 gear ratio and pinion gear has 14 teeth (14:23)
3 cylinder

50 hp.
years 1991 to 1995
USA OD000750-OG589999
BEL 9683055-9973099

55 hp.
year 1996
USA. OD000750 and up
BEL. 9741042 and up

60 hp. standard , non-Bigfoot
years 1991 to 1995
USA 0D000750 and up
BEL. 9683055 AND UP

11550
11550

P/N 11550 Forward, pinion and reverse with pinion nut and 2 sets of shims #43-803500T1 and #43-12635T $597.95

11560
11560

P/N 11560 Forward, pinion and reverse with pinion nut and 2 sets of shims #803500T1 $494.95

11570
11570

P/N 11570 Reverse 3 jaw #43-12635T $238.95

Note 3 jaw clutch reverse gear with 2.31 : 1 gear ratio and pinion gear has 13 teeth (13:30)

60 hp. 3 jaw reverse clutch bigfoot model
USA 0D00750 - 0G589999
BEL 9683055 - 9973099

70 hp. 3 jaw reverse clutch
USA 0A996142 - 0C221999
BEL 9483121 - 9589038

75 hp. 3 jaw reverse clutch
USA 0A996142 and up
BEL 9483121 and up

80 hp. 3 jaw reverse clutch
USA 0A996142 - 0C221999
BEL 9483121 - 9589038

90 hp. 3 jaw reverse clutch
USA 0A996142 and up
BEL 9483121 and up

100 hp. high altitude 3 jaw reverse clutch
USA 0B209468 and up
BEL 9523034 and up

115 hp. high altitude 3 jaw reverse clutch
USA 0C100000 and up
BEL 9559771 and up

125 hp. high altitude 3 jaw reverse clutch
USA 0D283222 and up
BEL 9793577 and up

11555
11555

P/N 11555 GLM marine aftermarket complete gear set with shims and pinion nut $483.95

11565
11565

P/N 11565 #43-803501T1 $444.95

11575
11575

P/N 11575 Reverse #43-850034T $264.95

Note 6 jaw clutch reverse gear with 2.31 : 1 gear ratio and pinion gear has 13 teeth (13:30)

3 cylinder

60 hp. 6 jaw reverse clutch bigfoot model
USA 0D000750 - 0G589999
BEL 9683055 - 9973099

60 hp. 6 jaw reverse clutch bigfoot model
USA 590000 and up BEL 9973100 and up

70 hp. 6 jaw reverse clutch
USA 0A996142 - 0C221999
BEL 9483121 - 9589038

75 hp. 6 jaw reverse clutch
USA 0A996142 and up
BEL 9483121 and up

80 hp. 6 jaw reverse clutch
USA 0A996142 -0C221999
BEL 9483121 - 9589038

90 hp. 6 jaw reverse clutch
USA 0A996142 and up
BEL 9483121 and up

100 hp. high altitude 6 jaw reverse clutch
USA 0B209468 and up
BEL 9523034 and up

115 hp. high altitude 6 jaw reverse clutch
USA 0C100000 and up
BEL 9559771 and up

125 hp. high altitude 6 jaw reverse clutch
USA 0D283222 and up
BEL 9793577 and up

11440
11440

P/N 11440 Complete gear set 43-44104T2 $758.95

11450
11450

P/N 11450 Pinion-forward gear set 1.87 ratio 15-28 #43-44104T2 $354.95

11460
11460

P/N 11460 Reverse #43-824986A2 $343.95

OEM 43-44104T2 1.87 ratio 15:28

V-150 hp. XR4, Mag III with 4-1/4 Diameter torpedo
USA OD082000-OG437999

V-150 hp. EFI. Standard rotation ratcheting style 1.87:1 ratio

11556
11556

P/N 11556 Complete gear set $777.95

11566 Complete
11566 Complete

11566 #43-803037T1 $777.95

11576
11576

P/N 11576 #43-19671T $231.95

4 cylinder

100 hp. 3 jaw reverse clutch
USA 0B209468 and up
BEL 9523034 and up

115 hp. 3 jaw reverse clutch
USA 0C100000 and up
BEL 9559771 and up

125 hp. 3 jaw reverse clutch
USA 0D283222 and up
BEL 9793577 and up

11665 V6
11665 V6

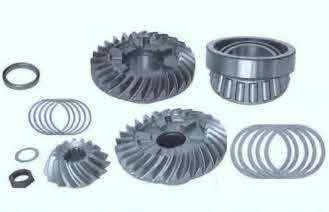

P/N 11665 Complete gear set $514.95

11675
11675

11675 #43-803615T2 $478.95

11685 Reverse V6 gear
11685 Reverse V6 gear

11685 #43-828175A1 $452.95

V-150 hp. (XR6, MAG lll) Standard rotation 1.87:1 ratio
USA 0G438000 and up

V-150 hp. EFI Standard rotation 1.87:1 ratio
USA 0G438000 and up

V-150 hp. DFI Standard rotation 1.87:1 ratio
USA 0G590000 and up

V-175 hp. Standard rotation 1.87:1 ratio
USA 0G438000 and up

V-175 hp EFI Standard rotation 1.87:1 ratio
USA 0G438000 and up

11557
11557

P/N 11557 Complete gear set $433.95

11567
11567

P/N 11567 Pinion and forward gear #43-881260A5 $228.95

11577 Inline 4 cylinder
11577 Inline 4 cylinder

P/N 11577 #43-850036T $276.95

23222 shims
23222 shims
23221 kit
23221 kit

4 cylinder

100 hp. 6 jaw reverse clutch
USA OB209468 and up
BEL 9523034 and up

115 hp. 6 jaw reverse clutch
USA 0C100000 and up
BEL 9559771 and up

125 hp. 6 jaw reverse clutch
USA 0D283222 and up
BEL 9793577 and up

11660 Gear set
11660 Gear set

11660 #43-44102A2 $681.95

11670
11670

#11670 #43-44102A7 $439.95

11680 Reverse 43-824987A2
11680 Reverse 43-824987A2

P/N 11680 #43-824987A2 $344.95

V 135 hp. Standard Rotation 2:1 Ratio
USA 0A904646 - 0G437999

V-135 hp. Standard Rotation 2:1 Ratio
USA 0G438000 and up

V-135 hp. DFI Standard Rotation 2:1 Ratio
USA 0G590000 and up

V-150 hp. Standard Rotation 2:1 Ratio
USA 0A904646 - 0G437999

V-150 hp. Standard Rotation 2:1 Ratio
USA 0G438000 and up

11770
11770

P/N 11770 Gear set $640.95

11780
11780

P/N 11780 Pinion and forward gear #43-803619T1 $664.95

11790
11790

11790 #43-85462T $325.95

V-6 150 hp. Standard rotation 2:1 ratio
USA 6616991 - OA904645

V-6 175 hp. Standard rotation with pre-load pin in drive-shaft
USA 5393737 - 6618750
AUS 8064250 and up

V-6 200 hp. Standard rotation with pre-load pin in drive-shaft
USA 5393737 - 6073191
AUS 8061595 - 8065672

11700 V6 3 liter
11700 V6 3 liter

P/N 11700 Complete gear set $640.95

11710 Forward pinion gear 43-859321A3
11710 Forward pinion gear 43-859321A3

P/N 11710 Forward pinion gear 43-859321A3 $349.95

11720
11720

P/N 11720 Reverse gear 43-859322A1 $283.95

V-200 hp. Standard rotation ratio 1.75:1, Non-Ratcheting clutch 1997
USA 00438000 and Up

200 hp. 3.O liter DFI Standard rotation ratio 1.75:1 Ratio 1998
USA 00590000 and Up

200 hp. 3.O liter Standard rotation ratio 1.75:1 Ratio 1998
USA 00590000 and Up

225 hp. 3.O liter DR Standard rotation ratio 1.75:1 Ratio 1998
USA 00590000 and Up

225 hp. 3.O liter EFI Standard rotation ratio 1.75:1 Ratio 1995-1998
USA 00438000 and Up

250 hp. 3.O liter EFI Standard rotation ratio 1.75:1 Ratio 1995-1998
USA 0G129222-0G437999

11313
11313

P/N 11313 Complete gear set V6 $415.95

11092
11092

P/N 11092 Pinion and forward gear set V6 $686.95

11013
11013

P/N 11013 Reverse V6 sea pro 1.62 ratio $250.95

1.62:1 Ratio

13 tooth pinion
21 tooth forward gear

V6 225 hp. Sea pro 3.0 liter carburetor
USA OG245605-OG437999
years 1994 to 1998

V6 225 hp. 3.0 liter carburetor
USA OD280813 and up
years 1994 to 1998

21820 Bearing
21820 Bearing

P/N 21820 Bearing $35.95

11360
11360

P/N 11360 Reverse $285.95

11350
11350

P/N 11350 Forward $525.95

11340
11340

P/N 11340 pinion #43-68548T3 $228.95

11330
11330

P/N 11330 Forward, pinion and reverse with bearing $718.95

2.0:1 Ratio

14 tooth pinion
28 tooth forward gear

L6 90 hp.
USA 4845301 and up
years 1978 to 1986

L6 115 hp.
USA 4855153 and up
years 1978 to 1989

L6 140 hp.
USA 4865678 and up
years 1978 to 1981

L6 150 hp.
USA 3502806 and up
years 1973 to 1978

use bearing 21820
