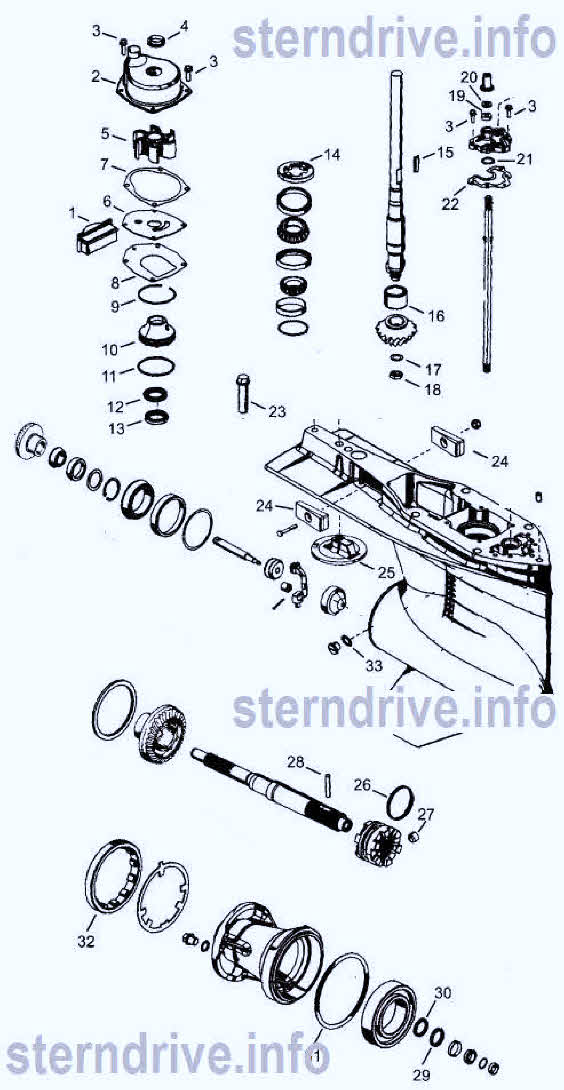

Mercury outboard parts drawing 4 stroke Verado lower unit

GLM Aftermarket Lower Unit parts drawing for
135 to 225 hp. L4, L6 and V6

  • Parts 1 to 33

Mercury 4 stroke

Mercury 4 stroke

12121 water pump kit
12121 water pump kit

12013 Verado service kit 135-275 hp.

12121 four stroke

135 hp. Verado
USA. 1B227000 and up

150 hp. Verado
USA. 1B227000 and up

175 hp. Verado
USA. 1B227000 and up

200 hp. Verado
USA. 0T980000 and up

225 hp. Verado
USA. 0T980000 and up

250 hp. Verado
USA. 0T980000 and up

275 hp. Verado
USA. 0T980000 and up

87515 Mercury outboard seal kit

87515

Item A
P/N 87515 Seal kit $32.98

V-200 hp. DFI 3.0 liter
USA. OG386496 up

V-225 hp. 3.0 liter with C-2 Casting
USA. OD280813 up

V-225 hp. 3.0 liter Sea Pro Marathon
USA. OG245605 up

V-225 hp. EFI 3.0 liter
USA. OG129222 up

V-225 hp. DFI 3.0 liter
USA. OG590000 up

V-250 hp. EFI 3.0 liter
USA. OG129222 up


Item 1
P/N 88180 Filter block OEM 821526 $19.95

12415 pump housing

12415 pump housing

Item 2
P/N 12415 Upper water pump housing OEM 817275A1 $71.95

12834 screws

12834 screws

Item 3
P/N 12834 Screw (M6-16) $4.95

85590 face seal

85590 face seal

Item 4
P/N 85590 Face seal $4.95

89630 impeller

89630 impeller

Item 5
P/N 89630 Impeller OEM 47-43026T2 $15.95

12500 wear plate

12500 wear plate

Item 6
P/N 12500 Wear plate OEM 817276-1 $6.95

31240 gasket

31240 gasket

Item 7
P/N 31240 gasket $4.95

30090 gasket

30090 gasket

Item 8
P/N 30090 Gasket $4.95

21775 retainer ring
21775 retainer ring
Item 9
P/N 21775 Retaining ring OEM 53-880719 $4.95

12366

12366

Item 10
P/N 12366 Pump base OEM 888909A1 $50.95

81395 o ring

81395 o ring

Item 11
P/N 81395 O Ring OEM 25-896523 $4.95

85016 seal

85016 seal

Item 12
P/N 85016 Oil seal OEM 26-888920 $8.95



Item 13
P/N 85017 Oil seal OEM 26-888921 $8.95

23200 retainer

23200 retainer

Item 14
P/N 23200 Retainer OEM 824519-1 $4.95

11071 key
11071 key

Item 15
P/N 11071 Key OEM 28-43037 $4.95

21610 Drive shaft bearing

21610 Drive shaft bearing

Item 16
P/N 21610 Drive shaft bearing OEM 31-42647A1 $43.95

11190 pinion nut

11190 pinion nut

Item 18
P/N 11190 Nut OEM 11-35921 $4.95



Item 19
P/N 85581 Oil seal OEM 26-816464-1 $7.95

12710 anode

12710 anode

Item 25
P/N 12710 Trim anode OEM 76214Q5 $16.95

11050 spring

11050 spring

Item 26
P/N 11050
Clutch springs, 2 units. OEM 24-30893 $4.95

85018 oil seal

85018 oil seal

Item 29
P/N 85018 Oil seal OEM 26-896600 $8.89

85019 oil seal

85019 oil seal

Item 30
P/N 85019 Oil seal OEM 26-888483 $9.95

21120 cover nut

21120 cover nut

Item 32
P/N 21120 Cover nut OEM 79448 $18.95
