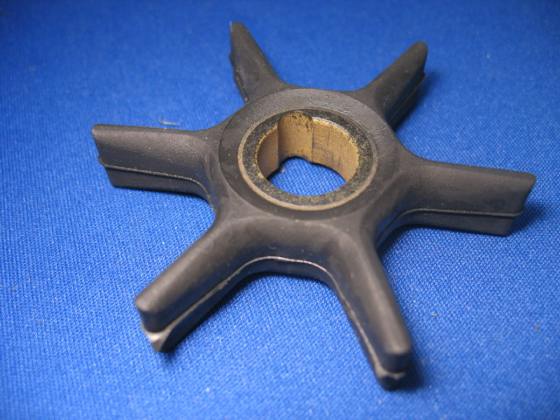

GLM products aftermarket Mercury water pump impellers for outboard 6 hp., 8 hp., 9.9 hp. XR10 hp. Sea Pro, 10 hp. Magnum and 15 hp.

  • High pressure GLM aftermarket Mariner / Mercury outboard water pump impeller
  • Outside diameter 2.312 inches
  • Inside diameter .500 (1/2") of an inch
  • See our help help page for other hp. lower unit parts
89451 Mercury outboard water pump impeller

6 hp. USA OA197112 & up BEL 9461526 & up
8 hp. USA OA197112 & up BEL 9461526 & up
8 hp. (4 Stroke) Bodensee USA OG760300 & up
8 hp. (4 Stroke) Bodensee USA OH017100 - OH017349
9.9 hp.  USA OA197112 & up BEL 9461526 & up
9.9 hp. (4 Stroke) USA OG760300 & up
9.9 hp. 4 Stroke USA OH000058 - OH016909
XR10 / Sea Pro, 10 hp. Magnum & Marathon USA OD038000 & up BEL 9596000 & up
15 hp. USA OB292414 & up / BEL 9542620 & up
15 hp. Sea Pro Marathon USA OG044365 & up BEL 9927000 & up

# 89451 Impeller $14.89
OEM # 47-42038Q02
