Mercury outboard water pump 35 to 65 hp. P/N 12170

GLM products aftermarket water pump with impeller
for 35 thru 65 hp.

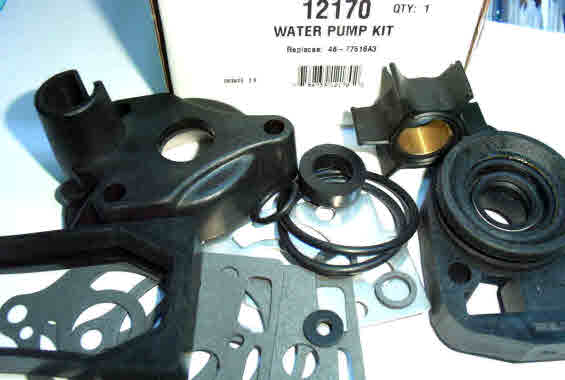

12170 Mercury outboard water pump kit

12170 Mercury outboard water pump kit

P/N 12170 Water pump kit with impeller and key $80.89
OEM 46-77516A3

Included:

P/N 82210 O RING 25-21836
P/N 82150 O RING 25-35027
P/N 85590 FACE SEAL 26-816575A2
P/N 12413 PUMP HOUSING
P/N 89630 IMPELLER 47-43026T2
P/N 11071 KEY 28-43037
P/N 31240 GASKET 27-817277-1
P/N 12500 WEAR PLATE 817276-1
P/N 30090 GASKET 27-43033-1
P/N 12341 PUMP BASE 807929A1
P/N 31170 GASKET 12-19183-3 Kit (2)
P/N 82115 O RING 25-21836 (2)

P/N 12170
46-77516A3 $62.89

12170

35 hp.
350 (4)
1960827 - 2453068

40 hp. 400/402
US. 2874704 - 4362214
BEL. 3339688 - 9108563
CAN. 3340783 - 7070272

50 hp. 500 (4)
US. 2305101 - 2478119

50 hp. 500 (2)
CAN. 2305101 - 2308830
50 hp. 500 (4)
CAN. 2305101 - 2308830

50 hp. 500
US. 2514919 - 4357639
AUS. 2863739 - 8030089
BEL. 9001581 - 9107213
CAN. 2519919 - 7068997

65 hp. 3 cylinder
US. 3293184 - 4382056
AUS. 8006640 - 8042349
BEL. 9020074 - 9112988
CAN. 7013633 - 7073472
