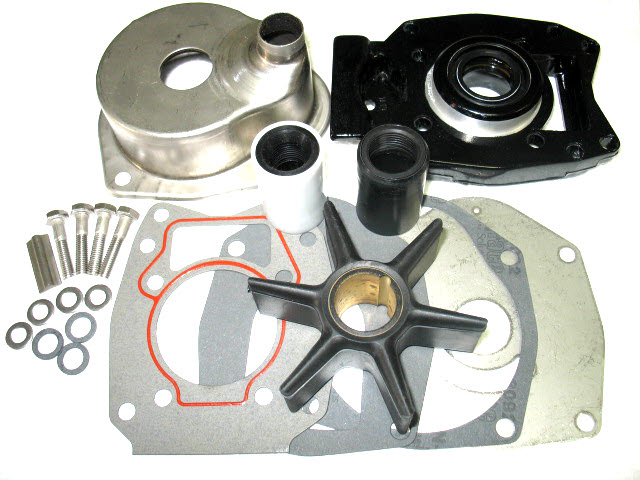

Mercury outboard water pump 40 to 115 hp. P/N 12094

GLM products aftermarket water pump P/N 12094

  • Complete outboard with housing
  • OEM 46-43024A09
  • Fits 2001 and up
  • 40 to 115 hp.
  • 4 Cylinder lower units

Exploded view drawings Click here
Search by part number or description here

12094 Mercury outboard water pump

12094 Mercury outboard water pump $83.89

P/N 85180 WATER TUBE SEAL OEM 43023

P/N 85190 WATER TUBE SEAL(BLK) OEM: 43023-2

P/N 85590 FACE SEAL OEM: 26-816575A2

P/N 12413 PUMP HOUSING OEM: Not Sold Separately

P/N 89630 OEM: 47-43026T2* IMPELLER

P/N 11071 KEY OEM: 28-43037

P/N 31240 GASKET OEM: 27-817277-1

P/N 12500 WEAR PLATE OEM: 817276-1

P/N 30090 GASKET OEM: 2743033-1

P/N 12345 PUMP BASE OEM: N/A

P/N 30320 GASKET OEM: 27-43047-2

P/N 31170 GASKET OEM: 12-19183-3 Kit Contains: 3

P/N 23234 SCREW OEM: 10-826844-30 Kit Contains: 4

P/N 21490 WASHER OEM: 12-29245 Kit Contains: 4

P/N 31590 INSULATOR OEM: 23-43045 Kit Contains: 4

12094
40 hp.
4-Stroke Bigfoot

US. OG231123 and up
45 hp. 4 Stroke Bigfoot, Bodensee B.F.
US. OG231123 and up

50 hp. 4 Stroke,Bigfoot
US. OG231123 and up

60 hp. 3 cylinder Bigfoot
US. OD00750 and up
BEL. 9683055 and up

65 hp. Jet
US. OD283222 and up
BEL. 9793577 and up

70 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up

75 hp. 3 cylinder
US. OC222000 and up
BEL. 9589039 and up

80 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up

80 hp. Jet
US. OD283222 and up

BEL. 9793577 and up

90 hp. 3 cylinder
US. OA996142 and up
BEL. 9483121 and up

100 hp. 4 cylinder
US. OB209468 and up
BEL. 9523034 and up

115 hp. 4 cylinder
US. OC100000 and up
BEL. 9559771 and up

125 hp. 4 cylinder
US OD283222 and up
BEL 9793577 and up
