Mercury outboard water pump kit for 200 to 225 hp.

GLM products aftermarket water pump P/N 12414

  • Mercury / Mariner water pump with impeller
  • 200 to 225 hp.
  • OEM 817275Q4
  • Exploded view parts drawings Click here
    Search by part number or description here

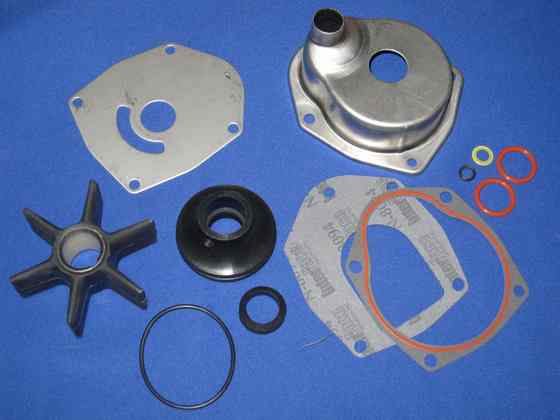

12414 Mercury outboard water pump kit

12414 Mercury outboard water pump

P/N 12414 Water pump kit with impeller and housing $109.95 OEM 817275Q4

12414

200 hp. DFI 3.0L

US OG590000 and up

225 hp. DFI 1998
US. OG590000 and up
BEL. 9461526 and up

Parts included listed here

P/N 82210 O RING 25-21836

P/N 82150 O ring 25-35027

P/N 85590 Face seal 26-816575A2

P/N 12413 Pump housing

P/N 89630 Impeller 47-43026T2

P/N 11071 Key 28-43037

P/N 31240 Gasket 27-817277-1

P/N 12500 Wear plate 817276-1

P/N 30090 Gasket 27-43033-1

P/N 12341 Pump base 807929A1

P/N 31170 Gasket 12-19183-3 Kit(2)

P/N 82115 O ring 25-21836 (2)
