Yamaha outboard V6 D-150 and DX-150 hp. drawing

GLM aftermarket parts for D 150, DX 150 hp. V6 motors

  • Water pump kit and gasket seal kit in lower unit drawing
  • D-150 hp. years 1997, 1998 and 1999
  • DX-150 hp. years 1999 to 2005
  • Exploded view lower unit drawings
    Photo or index page

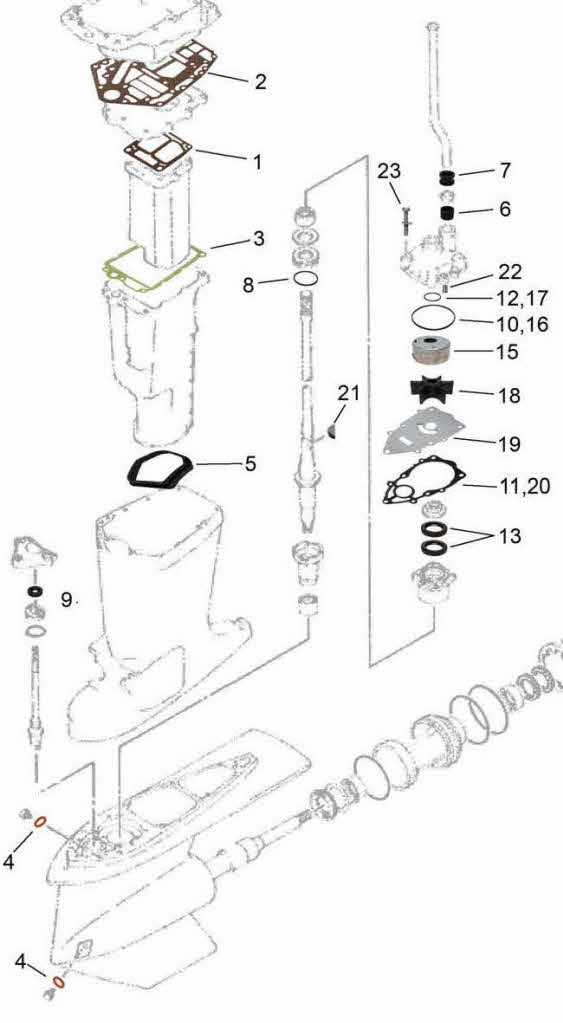

    V6 D I50 DX I50 drawing

    V6 D I50 DX I50 drawing

    * Water pump with housing P/N 12298
    ** Water pump P/N 12075

    Yamaha outboard lower unit components and photos


    Item 1
    P/N 38026 OEM 6G5-41134-A1-00
    Gasket, exhaust manifold

    Item 2
    P/N 38027 OEM 6G5-45114-A1-00
    Gasket for upper casing

    Item 3
    P/N 38028 OEM 6E5-41135-A0-00
    Gasket, exhaust manifold

    Item 4
    P/N 38015 OEM 90430-08020-00
    Gasket
    38029 Exhaust manifold gasket
    Item 5
    P/N 38029 OEM 6E5-45123-00-00
    Gasket for muffler

    Item 6
    P/N 38300 OEM 6E5-44365-00-00
    Damper, water seal

    Item 7
    P/N 38301 OEM 6E5-44366-00-00
    Damper, water seal


    Item 8
    P/N 84215 OEM 93210-55M14-00

    0-ring

    Item 9
    P/N 85223 OEM 93106-09014-00
    Oil seal

    Item 10
    P/N 84295 OEM 93210-86M38-00
    O-ring

    Item 11 & 20
    P/N 38007 OEM 65N-44315-A0-00
    Gasket for water pump

    Item 12 & 17
    P/N 84300 OEM 93210-37160-00
    O-ring

    Item 13
    P/N 85222 OEM 93101-28M16-00
    Oil Seal
    12075 Yamaha water pumps

    Yamaha water pump kit

    12075 Yamaha water pumps

    Item 14
    P/N 12075**+ OEM 65N-W0078-A1-00 repair kit $63.29
    P/N 12075 Water pump repair kit
    ( ** ) listed on drawing


    Item 15
    P/N 12870 **+ OEM 61A-44322-02-00
    Insert, cartridge

    Item 16
    P/N 84295 **+ OEM 93210-86M38-00
    O-ring
    89930 impeller

    89930 impeller

    Item 18
    P/N 89930 **+ OEM 6E5-44352-01-00
    Impeller $22.29


    Item 19
    P/N 12521 *+ OEM 65N-44323-00-00
    Outer plate, cartridge

    Item 21
    P/N 12808 **+ OEM 93606-12019-00
    Dowel pin $51.29


    P/N 22
    Dowel pin

    Item 23
    P/N 12074 + OEM 61A-44311-00-00
    Water pump housing

    Item 24
    P/N 22504 **+ OEM 90119-08M14-00
    Bolts with washer
    12298 Yamaha water pump kit
    Item 25
    P/N 12298 Complete with housing
    ( * ) listed on drawing
    OEM 65N-W0078-A1-00 and pump housing OEM 61A-44311-00-00 $134.29


    Item 26
    P/N 22504** OEM 90119-08M14-00
    Bolt with washer
    GLM 87841 Sierra 018-27940-1 V-6

    GLM 87841 Sierra 018-27940-1 V-6

    Item 28
    P/N 87841* OEM 6G5-W0001-C1-00
    Lower unit exhaust seal, gaskets, o-rings with the seal kit $83.29
