Yamaha seal kit *150 *175 *200 *225 hp. *V6 engine

Outboard lower unit seal and gasket kit models: 150 (6G4), C150, P150, PX150, S150, SX150, V150, VX150, VZ150, Z150, 175-6G5, P175, S175, VZ175, Z175, P200, L200, LX200, VZ200, V6, 225/L225 and 3.1 litre engine 250/L250

Seals with O-rings, gaskets and exhaust seal
  • 150 (6G4) years 1984 to 1992
  • C150 years 1996 to 1999
  • L150 (6KO) years 1984 to 1999
  • P150 years 1986 to 1999
  • PX150 year 1999
  • S150 years 1994 to 1999
  • SX150 years 1999 to 2004
  • V150 years 2001 and 2002
  • VX150 years 2000 to 2002
  • VZ150 years 2000 and 2002
  • Z150 years 2000 to 2002
  • 175 years 1984 to 2000
  • 175 (6G5) years 1985 to 1994
  • P175 years 1994 to 1999
  • S175 year 1999
  • VZ175 years 2001 and 2002
  • Z175 years 2001 to 2002
  • 200 years 1984 to 1999
  • P200 years 1991 to 2000
  • L200 years 1984 to 1999
  • LX200 years 1999 to 2002
  • VZ200 years 2001 to 2002
  • V6 Special years 1984 to 1986
  • V6 Excel 1987 to 1989
  • 225 years 3 cylinder model 1990 to 19976
  • 225/L225 3.1 litre engine years 1994 to 1996
  • 250/L250 years 1990 to 1996
Exploded view lower unit Yamaha drawings
Search by part number or description here
018-27940-1

018-27940-1

OEM 6G5-W0001-21-00 and OEM 6G5-W0001-C1-00

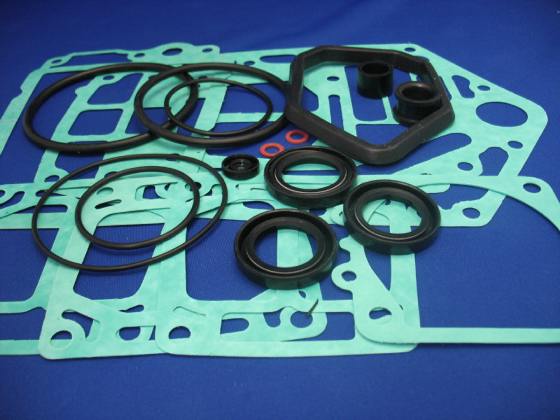

lower unit gasket and seal kit # 018-27940-1 $99.29

Qty
OEM number and seal kit / gasket parts description
1
6E5-44315-A0-00 Water pump gasket
2
YSG-14090-90-8G Drain-fill washer gasket
2
93101-28M16-00 Oil seal
2
93101-30M17-00 Oil seal
1
93106-09014-00 Oil seal
1
93210-37M67-00 O ring
1
93210-86M38-00 O ring
1
93210-97M55-00 O ring
