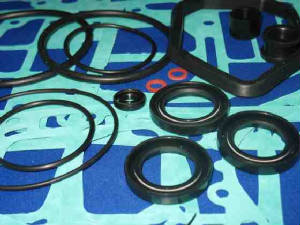

Yamaha outboard seal kit with gaskets and o rings

GLM Marine aftermarket seal kits
Lower unit seals and gaskets 2 to 275 hp.

  • Seal kits listed below require the use of gasket sealing compound, we use OMC Evinrude/Johnson gasket sealing compound part number is 508235.
  • Gaskets are best per-coated 24 hr before using and again just before installation this allows gasket to absorb compound for better seal on a damaged or scratched surface area.
  • O ring require gasket sealing compound as well at time of application.
  • Older lower unit gear-case will need oil seal area wire brushed then a coating of 680 Loctite applied to seal and retainer area.

Exploded view lower unit drawings
Search by part number or description here

GLM Marine 87843
GLM Marine 87843

P/N 87843 For 9.9 and 15 hp. 2 and 4-stroke lower units $44.00

Reference:
63V-W0001 -22-00
66M-W0001 -20-00
683-W0001 -Cl-00
63V-W0001 -21-00
6G8-W0001 -00-00
6G9-W0001 -00-00
6G8-W0001 -C2-00
6G9-W0001 -C2-00
6G8-W0001 -C4-00
6G9-W0001 -C4-00
6G8-W0001 -C6-00
6G9-W0001 -C6-00

Please note: This is not an exact replacement kit. We have improved our kit by omitting gaskets not necessary to seal the lower unit. This kit is designed specifically to seal the lower units on all 9.9 or 15 hp. OEM numbers for model reference only.

87826
87826

P/N 87826

20 hp. years (1996-1997)
25 hp. years (1988-1998, 2000-2001
and 2003-2004 $54.00

87827 seal kit
87827 seal kit

P/N 87827 seal kit Fits Models:

25 hp. (1986-1987)
C-25 hp. (1991-1997)
CV-25 hp. (1990)
30 hp. (1986-1987, 1989-1993, 1996)

018-27850 Yamaha lower unit
018-27850 Yamaha lower unit
P/N 18-2785 $52.29

25 hp. years 1984 and 1985
C25 hp. 1990 and 1991
CV25 hp. year 1991
30 hp. years 1984,1985,1986
C30 hp. year 1991

87836  6H3-W0001-22
87836  6H3-W0001-22
P/N 87836 #6H3-W0001-22
6H2-W0001-20 $49.29 6H3-W0001-22 Models

C-60 HP (1996-2001)
C-70 HP (2000-2001)
E-60 HP (1995-2000)
P-60 HP (1991-1999) 6H2-W0001-20 Models
60 HP (2001-2005)
70 HP (1984-2005)

87833
87833
P/N 87833 OEM-6J8-W0001-C2 $36.29
Models:

F-25 HP. (1999-2001)
30 HP. (1987, 1989 to 1993, 1996 to 1999 and 2001-2002)

018-27890
018-27890
P/N Seal kit $49.29

C25 hp. 1990 and 1991 and CV25 hp. year 1991
30 hp. years 1984,1985 and 1986 and C30 hp. year 1991

GLM 87834 Sierra 018-27920 gearcase
GLM 87834 Sierra 018-27920 gearcase
P/N 87834 #63D-W0001-20 $46.29

40 hp. years 1984 and 1985
P-40 hp. year 1998
C-40 hp. years 1998 to 2002
50 hp. years 1986 to 2005
C-50 hp. years 1998 to 2001
P-50 hp. years 1991 to 1996

87812
87812
P/N 87812 #698-W0001-21, 698-W0001-C0 $99.29

698-W0001-21 fits model
C-55 hp. year 1991 to 1995
E-48 hp. 1995, 1997 to 2000

698-W0001-C0 fits model
CV-55 hp. year 1989

87841
87841
87841 V6
87841 V6
P/N 87841 Seal kit $90.29

150 (6G4) years 1984 to 1992
C150 years 1996 to 1999
L150 (6KO) years 1984 to 1999
P150 years 1986 to 1999
PX150 year 1999
S150 years 1994 to 1999
SX150 years 1999 to 2004
V150 years 2001 and 2002
VX150 years 2000 to 2002
VZ150 years 2000 and 2002
Z150 years 2000 to 2002
175 years 1984 to2000
175 (6G5) years 1985 to 1994
P175 years 1994 to 1999
S175 year 1999
VZ175 years 2001 and 2002
Z175 years 2001 to 2002
200 years 1984 to 1999
P200 years 1991 to 2000
L200 years 1984 to 1999
LX200 years 1999 to 2002
VZ200 years 2001 to 2002
V6 Special years 1984 to 1986
V6 Excel 1987 to 1989
225 years 3 cylinder model 1990 to 1976
225/L225 3.1 litre engine years 1994-1996
250/L250 years 1990 to 1996
225/L225 3.1 liter engine years 1994-1996
250/L250 years 1990 to 1996

87842
87842
P/N87842 018-27990

Seals, O-rings, gaskets and exhaust seal $105.29
225/L225 3.1 litre engine years 1994 to 1996
250/L250 years 1990 to 1996

87838 115 and 130 hp. 6E5-W0001-F1 and 6E5-W0001-51
87838 115 and 130 hp. 6E5-W0001-F1 and 6E5-W0001-51

P/N 87838 #6E5-W0001-F1, 6E5-W0001-51 $70.00

6E5-W0001-F1 Fits Models
C-115 HP (1996-2000)
P-1I5 HP (1996)
S-1 1 5H P (1996-1999)
S-130HP (1997-1998)
115 HP. (1986, 1994-2005)

6E5-W0001 -51 Fits Models
C-I15 HP (1991-1995)
P-115 HP (1993-1995)

87828 L-225 hp. 1997-1999
87828 L-225 hp. 1997-1999

P/N 87828 #65L-W0001-00 Fits Models $130.00

L-225 HP (1997-1999)
L-250 HP (1990-1999)
LX-225 HP (2000-2003)
LX-250 HP (2000-2003)
S-225 HP (1997-1999)
S-250 HP (1996-1999)
SX-225 HP (2000-2003)
SX-250 HP (2000-2003)

87839 130 hp.

87839 130 hp.

P/N 87839 #6F5-W0001-C1 $70.00

C-130 HP 1996
L-130 HP 1989, 1994 true 2001
S-130 HP 1996, 1999
130 HP years 1988, 1994 true 2004



P/N 87837 OEM-688-W0001-C0, 688-W001-22 $56.00

688-W0001-C0 Models
CV-85 HP (1989 to 1990)

688-W001-22 Models
B-90 HP (1998-1999), C-75 HP (1994 to 1998)
C-8O HP (1997), C-85 HP (1991 to 1996)
C-90 HP (1997 to 2001), E-75 HP (1995 to 2000)
P-75 HP (1996 to 1999), 90 HP (1984 to 2005)
