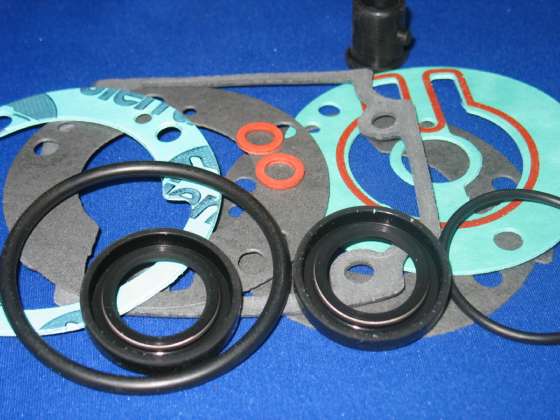

Yamaha outboard seal kit *25 *C25 *30 *C30 hp.

GLM aftermarket lower unit gasket and seal kit for models:
(25 hp. 1984-1985), (C25 hp. 1990-1991), (CV25 hp. 1991)
(30 hp. 1984-1985-1986) and (C30 hp. 1991

Seal, O rings and gasket kit:
  • 25 hp. years 1984 and 1985
  • C25 hp. 1990 and 1991 and CV25 hp. year 1991
  • 30 hp. years 1984,1985 and 1986 and C30 hp. year 1991
  • Parts listed require the use of gasket sealing compound, we use Evinrude/Johnson gasket sealing compound part number 508235.

Search by part number or description here

27850

OEM 689-W0001-21-00

OEM 689-40001-C1-00

Yamaha and seal kit # 018-27850 $52.29

Qty

OEM number and  parts description

1
682-44365-00-00 Grommet
1
689-44366-00-00 Grommet
3

YSG-14090-90-8G Drain-fill washer gasket

1

93101-20M07-00 Oil seal

2

93101-22067-00 Oil seal

1

93210-40M10-00 O ring

1

664-41134-A0-00 Exhaust tube gasket

2

689-44316-A0-00 Wear plate gasket
