Yamaha outboard parts *Lower unit drawings

T.C. Electronics/Marine ( Need the home page please click here )

Yamaha seal kit *55 hp. years *1989 *1991

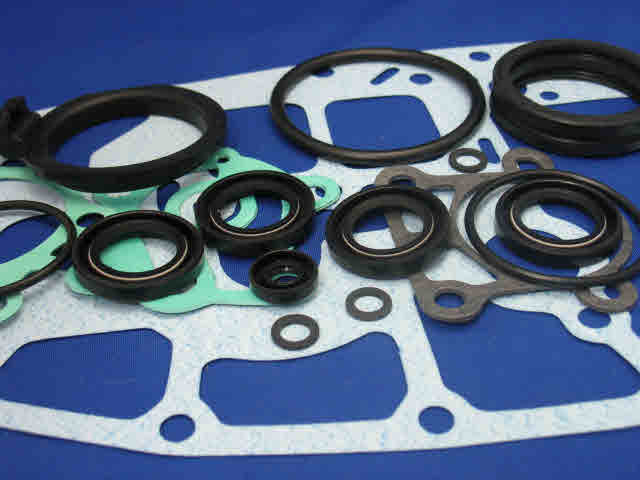

Aftermarket lower unit seal and gasket kit for models:
C55 hp. year 1991 and CV55 hp. year 1989

Seals with O-rings and gaskets
  • C55 hp. year 1991
  • CV55 hp. year 1989
  • Exploded view lower unit Yamaha drawings

    seal kit

    seal kit

    OEM 698-W0001-20-00 lower unit gasket and seal kit # 018-27870 $99.29

    Qty

    OEM number and seal kit parts description

    1
    682-44365-00-00 Grommet
    1
    689-44366-00-00 Grommet
    3
    YSG-14090-90-8G Drain-fill washer gasket
    1
    93101-20M07-00 Oil seal
    2
    93101-22067-00 Oil seal



    1
    93210-40M10-00 O ring



    1
    664-41134-A0-00 Exhaust tube gasket



    2
    689-44316-A0-00 Wear plate gasket
