Mercruiser propeller shaft *lower unit part

GLM aftermarket propeller shaft

  • GLM Marine aftermarket propeller shaft and related parts OEM 44-850308 are compatible with Mercruiser 120/140, 470/485, all V8 MC-1 / R / MR / Alpha 1 / Alpha 1 Gen 2 outdrive models 1970 - up.
  • Note: P/N 11155 now replaces P/N 11150 OEM 44-824110.
  • GLM tools that may be required to do repairs are as follows:
  • P/N 90210 Pinion nut adaptor to hold pinion nut when removing pinion gear and drive shaft.
  • P/N 90190 Bearing carrier retainer wrench used to remove and install bearing carrier retainer nut.
  • P/N 90095 Puller tool used to remove the sterndrive bearing carrier before removing prop shaft.

Tech support Exploded view drawings
Search by part number or description here

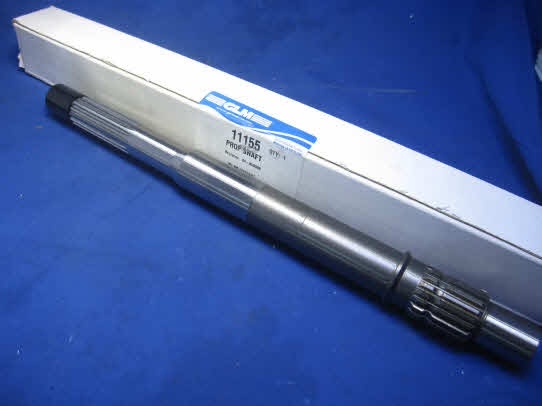

11155 mercruiser prop shaft

11155 mercruiser prop shaft

P/N 11155 Outdrive prop shaft OEM 44-850308 $660.95 Note: This shaft replaces P/N 11150 (OEM 44-842110)

21250 Prop nut kit

11-827614

11-827614

P/N 21250 Prop nut and tab washer kit OEM 11-52707Q1 $9.00

P/N 21230 Prop nut OEM 11-827614 $8.95

12-835467-1

12-835467-1

P/N 21301Thrust washer OEM 12-835467-1 $21.95 Brass hub is used as a spacer on the prop shaft between the propeller and bearing carrier

21305 Service kit with thrust washer

21305 Service kit with thrust washer

P/N 21305 Propeller shaft service kit OEM N/A $23.00
Includes brass nut, tab washer and receiver, lockwasher and thrust hub

21360 Tab washer receiver

21360 Tab washer receiver

P/N 21360 Tab washer receiver OEM 12-31211A3 $7.00

21200 Tab washer

21200 Tab washer

P/N 21200 Tab washer OEM 14-816629 $4.00

21760 Lock washer

21760 Lock washer

P/N 21760 Lock washer OEM 13-42351-1 $4.00

90095 Bearing carrier puller tool replaces 90090

90095 Bearing carrier puller tool replaces 90090

P/N 90095 Bearing carrier puller OEM N/A31211A3 $82.95 Exclusive GLM design. This tool can be used for old or new style bearing carrier. Adjustable arms allows this tool to be used on all models along with Johnson/Evinrude and Mercury Outboard models
