Alpha 1 GLM aftermarket ring for the upper gearcase
  • Replacement aftermarket ring for the Alpha 1 upper gearcase
  • Manufactured by GLM Marine aftermarket parts
  • OEM number: 35983
  • GLM number: 28390
  • Used in between the bearing carrier assembly and the bearing retainer
Timkin tapered roller bearing set

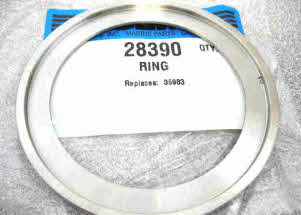

W 28390 Alpha 1 ring.jpg

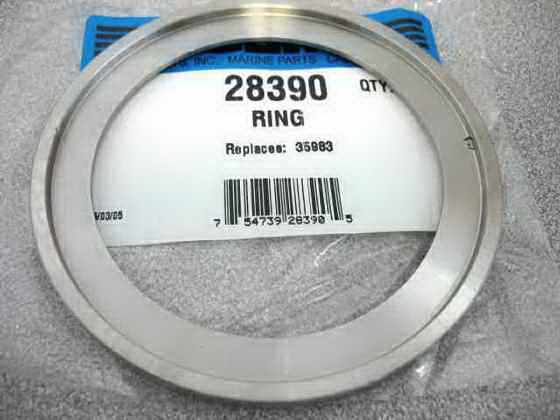

28390 Alpha 1 ring

#28390   $8.89
OEM # 35983



Part number 20 on our Alpha 1 upper gearcase drawing page
