Mercruiser Alpha One stern drive bearing retainer for upper gearcase

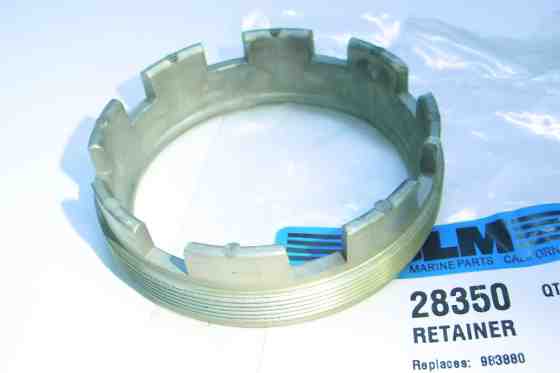

W 28350 Alpha 1 generation 2 bearing retainer nut.jpg
28350 Alpha 1 generation 2 bearing retainer nut.

#28350 Bearing retainer nut OEM # 816811-1
years 1983 thru 1997 $18.79
