Mercruiser 1 and Alpha One stern drive seal kit parts for lower gear case

Mercruiser Alpha One parts included in seal kit #87510 OEM# 26-33144A2 shown in lower gearcase drawing as #A

  • O-ring # 81160 OEM # 25-30613
  • O-ring # 81390 OEM # 25-90011
  • O-ring # 81180 OEM # 25-25439
  • Gasket #31020 OEM # 25-858524
  • Gasket # 31010 OEM # 27-85608-1
  • Gasket # 31050 OEM # 27-42631-1
  • Oil seal # 85040 OEM # 26-16977
  • Oil seal # 85070 OEM # 26-89238
  • Oil seal # 85581 OEM # 26-816464
  • Oil seal # 85700 OEM # 26-12224
  • Seal # 85140 OEM # 26-45577-1
  • Seal #12830 OEM # 25-39970
  • Slinger # 21330 OEM # 25-30271
Alpha One / Mercruiser 1 parts

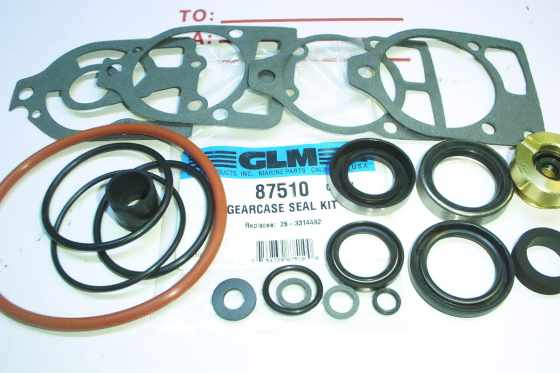

W 87510 Alpha One Mercruiser 1 seal kit parts for lower gearcase.jpg
Alpha One / Mercruiser 1 seal kit parts for lower gearcase 1973 thru 1984

# 87510 Mercruiser seal kit parts

OEM #26-33144A2  $39.98
