GLM Marine aftermarket Mercruiser Alpha One transom service kit
  • Bell Housing transom service kit for Alpha One stern drive includes the following:
  • 89050 U-Joint Bellow OEM # 60932A4
  • 89100 Exhaust Bellow OEM # 18654A1
  • 89080 Shift Cable Bellow OEM # 74639
  • 39622 Gasket Kit OEM # 27-94996T2
  • 21900 Gimbal Bearing OEM # 30-60794A4
  • 47110 Water Hose 3/4" OEM # 32-41725-33
  • 47120 Water Hose 5/8 " OEM # 32-32461
For units with exhaust bellow 1973 thru 1990

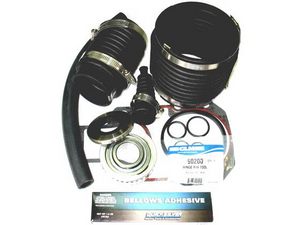

W 21950 Mercruiser or Alpha One transom service kit.jpg
#21950 Mercruiser outdrives and Alpha One outdrives serial #6225577 thru transom service kit

#21950 Transom service kit

     $167.89

Serial #6225577 thru Mercruiser-Alpha One drives

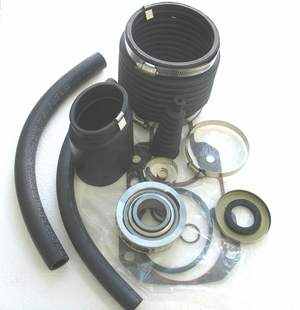

#21951 For units 1983 thru 1990 with straight exhaust bellow

# 21951 Transom service kit for Alpha One stern drive  $178.89
