Mercruiser Alpha One stern drive seal kit parts for upper gearcase

Mercruiser parts included in seal kit # 87500 OEM # 26-32511A1

  • O-ring # 80420 OEM # 25-32546
  • O-ring # 80190 OEM # 25-55801
  • Oil seal # 85020 OEM # 26-32511
  • Oil seal # 85060 OEM # 26-96503
  • O-ring # 81180 OEM # 25-25439
  • O-ring # 82380 OEM # 25-70937
  • Oil seal # 85030 OEM # 26-823894
  • Gasket # 31150 OEM # 27-55810-1
  • Grommet # 85150 OEM # 26-36557

Shown in upper gearcase drawing identified as # A
Alpha One / Mercruiser 1 parts 120 hp and up

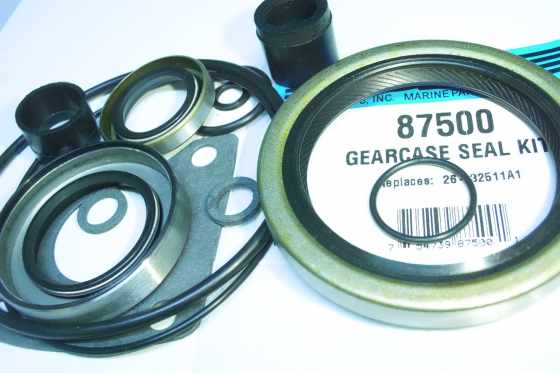

W 87500 Alpha One Mercruiser 1 seal kit parts for upper gearcase.jpg
Alpha One / Mercruiser 1 seal kit parts for upper gearcase years 1964 to 1989

# 87500 Mercruiser seal kit parts OEM # 26-32511A1 $30.79
