GLM aftermarket Mercruiser Alpha 1 carrier assembly upper gearcase part
  • U-joint seal carrier Alpha 1 carrier assembly also works with Mercruiser 1/R/MR
  • OEM #66081A2
  • Bravo outdrive requires #28372

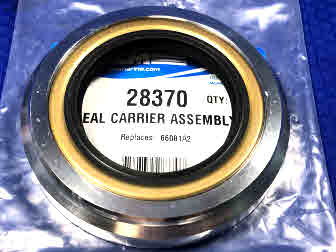

L 28370 alpha 1 carrier assembly mercruiser.jpg

  # 28370 Carrier assembly $38.29
