Yamaha outboard parts *Lower unit drawings

T.C. Electronics/Marine ( Need the home page please click here )

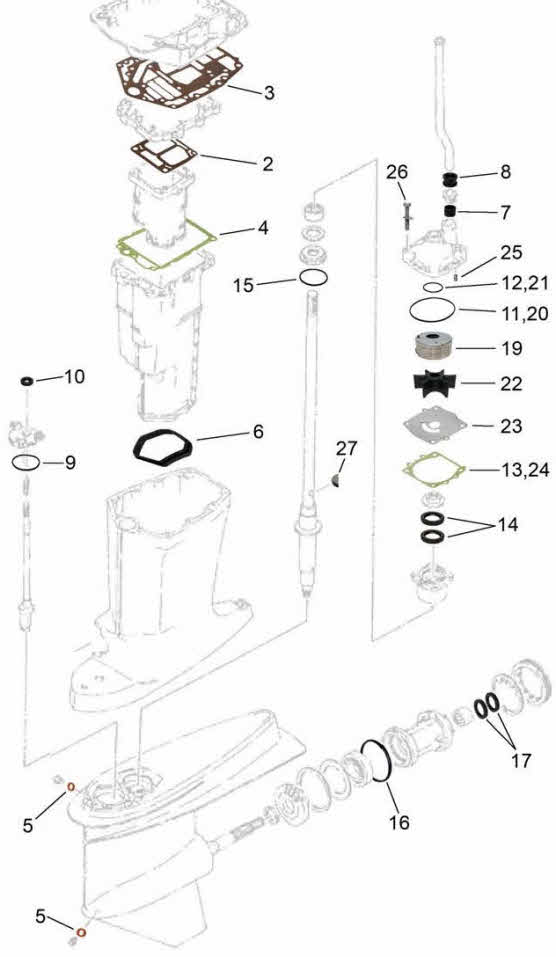

Yamaha parts 75-225 hp. V4-V6 Exploded view drawing

GLM Marine aftermarket parts drawing V4 - V6 motors

75 hp. to 225 hp.

75-225 hp. V4-V6 drawing

75-225 hp. V4-V6 drawing

S-75 HP. year 1996
C-150 HP. years 1996, 1998 and 1999
L-150 HP. 1992 to 1999
P-150 HP. years 1992 to 1999
S-150 HP. years 1996 to 1999
V-150 HP. years 2000 to 2005
PW-150 HP. year 1998
LX-150 HP. years 1999 to 2001
PX-150 HP. year 1999
SX-150 HP. years 1999 to 2004
VX-150 HP. years 2000 to 2004
Z-150 HP. years 2000 to 2005
LZ-150 HP. years 2000 to 2005
VZ-150 HP. years 2000 to 2005
P-175 HP. years 1994 to 1999
S-175 HP. years 1996 to 1999
V-175 HP. year 2000
Z-175 HP. years 2001 to 2005
VZ-175 HP. years 2001 to 2005
L-200 HP. years 1986 to 1999
P-200 HP. years 1991 to 1999
S-200 HP. years 1996 to 1999
LX-200 HP. years 1999 to 2001
SX-200 HP. years 1999 to 2005
LZ-200 HP. years 2000 to 2005
Z-200 HP. years 2000 to 2005
VZ-200 HP. years 2001, 2002, 2003 and 2004
75 HP. year 1996
175 HP. years 1985 to 1995 and 1997
200 HP. years 1984 to 1998
225 HP. years 1992, 1993 and 1997



  • Water pump and gasket seal kit in lower unit drawing.
  • Power-head year, hp. and model listed below:

87841 lower unit seal kit

87841 lower unit seal kit

Item 1
P/N 87841* OEM 6G5-W0001-C1-00
Lower unit gasket, o-rings and seal kit $83.29


Item 2
P/N 38026* OEM 6G5-41134-A1-00
Gasket, Exhaust Manifold

Item 3
P/N 38027* OEM 6G5-45114-A1-00
Gasket, Upper Casing

Item 4
P/N 38028* OEM 6E5-41135-AO-00
Gasket, Exhaust Manifold

Item 5
P/N 38015* OEM 90430-08020-00
Gasket

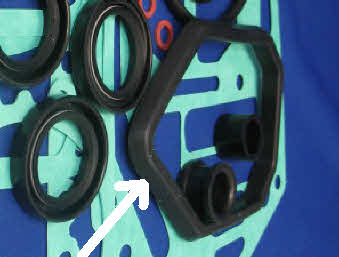

38029 Exhaust manifold gasket

38029 Exhaust manifold gasket

Item 6
P/N 38029* OEM 6E5-45123-00-00
Exhaust gasket muffler

Item 7
P/N 38300* OEM 6E5-44365-00-00
Damper, Water Seal

Item 8
P/N 38301* OEM 6E5-44366-00-00
Damper, Water Seal

Item 9
P/N 84240* OEM 93210-58144-00
0-ring

Item 10
P/N 85223* OEM 93106-09014-00
Oil Seal
84295

84295

Item 11
P/N 84295* OEM 93210-86M38-00
0-ring
84300 O ring

84300 O ring

Item 12
P/N 84300* OEM 93210-37160-00
0-ring
38000 gasket

38000 gasket

Item 13
P/N 38000* OEM 6E5-44315-A0-00
Gasket, Water Pump

Item 14
P/N 85222* OEM 93101-28M16-00
Oil Seal

Item 15
P/N 84215* OEM 93210-55M14-00
0-ring

Item 16
P/N 84245* OEM 93210-97M55-00
0-ring

Item 17
P/N 85221* OEM 93101-30M17-00
Oil Seal
12069 Yamaha water pump kit

12069 Yamaha water pump kit

Item 18
P/N 12069** OEM 61A-W0078-A3-00
water pump
repair kit $52.29


Item 19
P/N 12870** OEM 61A-44322-02-00
Insert, Cartridge

Item 20
P/N 84295 20** OEM 93210-86M38-00
0-ring

Item 21
P/N 84300** OEM 93210-37160-00
0-ring
89930 Impeller

89930 Impeller

Item 22

12511 Wear plate

12511 Wear plate

Item 23
P/N 12511** OEM 6G5-44323-00-00
Outer Plate, Cartridge

Item 24
P/N 38000** OEM 6E5-44315-A0-00
Gasket, Water Pump
12808 Dowel pin

12808 Dowel pin

Item 25
P/N 12808**  OEM 93606-12019-00
Pin, Dowel
22504 Bolt

22504 Bolt

22504 Washer for bolt

22504 Washer for bolt

Item 26
P/N 22504** OEM 90119-08M14-00
Bolt with washer
89588 Woodruff key half moon

89588 Woodruff key half moon

Item 27
P/N 89588 OEM 90280-04m05-00
Key half moon $8.29
