Yamaha outboard water pump repair kit 150 to 250 hp.

GLM Marine aftermarket water pump kit P/N 12069

Water pump repair kit for the following years and hp. :
  • PX150 hp. 1999
  • SX150 hp. 1999 to 2002
  • V150 hp. 2000 to 2002
  • VX150 hp. 2001, 2002
  • Z150/LZ150 hp. 2001, 2002
  • 175 hp. (6R3) 1992 to 2002
  • P175 hp. (62H) 1994 to 1999
  • VZ175 hp. 2001, 2002
  • Z175 hp. 2001, 2002
  • 200 hp. (6R4) 1992 to 1999
  • F200 hp. / LF200 hp. 2002
  • L200 hp. 1992 to 1999
  • LX200 hp.1999 to 2002
  • P200 hp. 1991 to 1999
  • SX200 hp.1999 to 2002
  • V200 hp. 1998, 1999
  • VZ200 hp. 2001, 2002
  • Z200 / LZ200 2000 to 2002
  • 225 hp. 2.6 liter engine 1992 to 1997
  • 225 / L225 / S225 3.1litre engine 1994 to 1999
  • F225 / LF225 hp. 2002
  • LX225/SX225 hp. 2000 - 2002
  • V225 hp. 1998, 1999
  • VX225 hp. 200 to 2002
  • 250 / L250 hp. 1990 to 1996
  • L250 / S250 hp. 1997 to 1999
  • VX250 hp. 2002

Exploded view Yamaha outboard lower unit drawings
Search by part number or description here

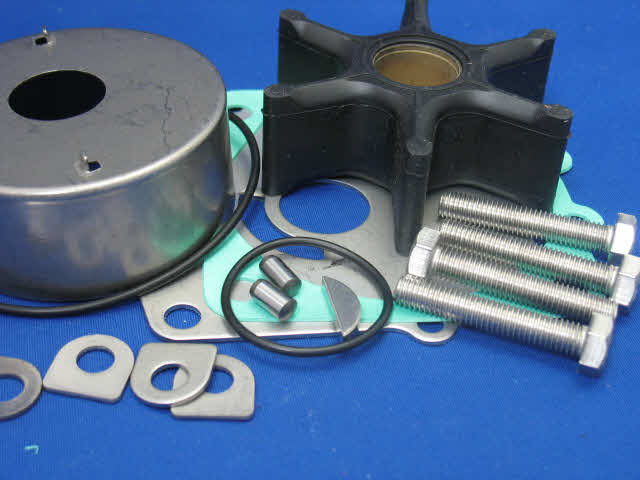

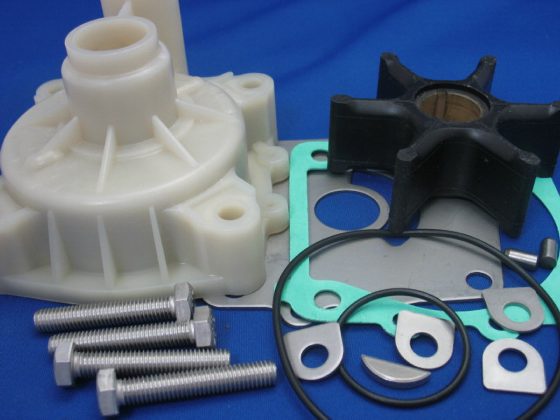

12069 Water pump kit with out housing

12069 Water pump kit with out housing

P/N 12069 GLM Marine aftermarket water pump repair kit OEM 61A-W0078-A3-00 $52.29

Qty

OEM number and description of parts

1

61A-44311-00 housing

1

6E5-44352-00 Impeller

1

6G5-44323-00 Wear plate

1

90280-04M05-00 Woodruff key

1

61A-44322-00 Insert cup

1

6E5-44315-A0-00 gasket

4

97395-08045-00 Bolt

1

93210-37M67-00 O ring

1

93210-86M38-00 O ring
