Yamaha outboard parts *130 *L130 hp. *V4 motors

Components for 130 and L I30 hp V4 lower units

  • 130 and L I30 hp. V4 motors. Water pump kit, impeller, gasket and seal kit in lower unit parts drawing.
  • Models: 130 hp. year 1998 and L 130 hp. years 1989 - 1998

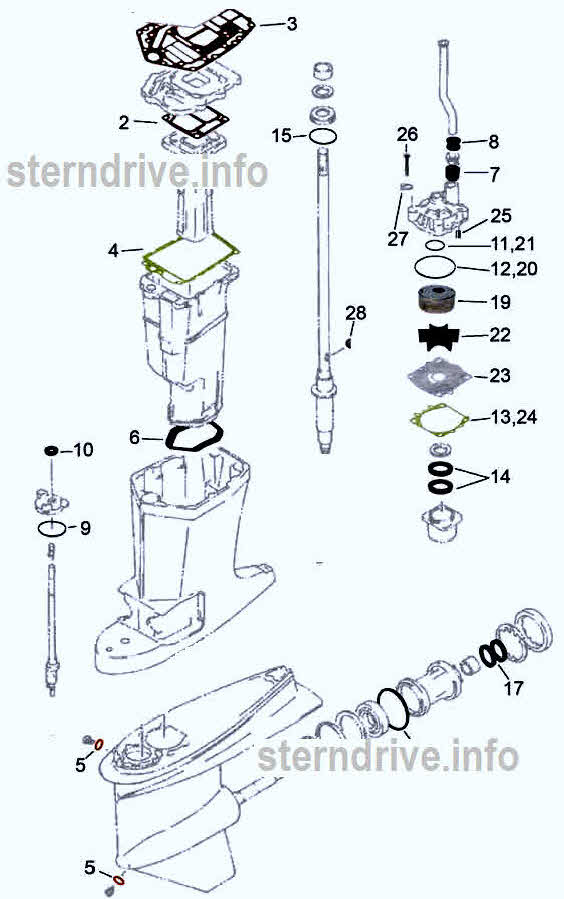

130-L130 Yamaha drawing

130-L130 Yamaha drawing


lower unit components and photos
87839 130hp

87839 130hp

Item 1
P/N 87839
GLM aftermarket lower unit gasket kit #6F3-W0001-21-00



Item 2
P/N 38026 Gasket Exhaust Manifold 6G5-41134-A0-00



Item 3
P/N 38027
Gasket Upper Casing 6G5-45114-A0-00



Item 4
P/N 38028
Gasket Exhaust Manifold 6E5-41135-A0-00



Item 5
P/N 38015
Gasket 90430-08020-00

38029 exhaust manifold gasket

38029 exhaust manifold gasket

Item 6
P/N 38029
Gasket Muffler 6E5-45123-00-00



Item 7
P/N 38300
Damper Water Seal 6E5-44365-00-00



Item 8
P/N 38301
Damper Water Seal 6E5-44366-00-00



Item 9
P/N 84240
O-ring 93210-58677-000



Item 10
P/N 85223
Oil seal 93106-09014-00

84300

84300

Item 11
P/N 84300
O ring 93210-37M67-00

84295 O ring

84295 O ring

Item 12
P/N 84295
O ring 93210-86M38-00

38000

Item 13
P/N 38000
Gasket Water Pump 6E5-44315-A0-00



Item 14
P/N 85222
Oil Seal 93101-28M16-00



Item 15
P/N 84215
0-ring 93210-54534-00



Item 16 P/N 84250 0-ring 93210-86M39-00



Item 17
P/N 85221
Oil Seal 93101-30M17-00

12054

12054

Item 18
P/N 12054
Water Pump Repair Kit 6E5-W0078-A1-00



Item 19
P/N 12871
Insert Cartridge 6E5-44322-00-00



Item 20
P/N 84295
0 ring 93210-86M38-00

84300 O ring

84300 O ring

Item 21
P/N 84300
0 ring 93210-37M67-00



89930 impeller

Item 22
P/N 89930
Impellers 6E5-44352-00-00






Item 23
P/N 12522
Outer Plate Cartridge 6E5-44323-00-00

38000

38000

Item 24
P/N 38000
Gasket Water Pump 6E5-44315A0-00

12808 Dowel pin

12808 Dowel pin

Item 25
P/N 12808
Pin Dowel 93606-12019-00



Item 27
P/N 22502
Boll 97395-08045-00



Item 28
P/N 22506
Washer 90209-08M02-00

89588 Woodruff key half moon

89588 Woodruff key half moon

Item 29
P/N 89588
Key Woodruff 90280-04M05-00

12086 kit

12086 kit

Item 30
P/N 12086
 Complete water pump repair kit
