Yamaha outboard parts *Exploded view lower unit drawings

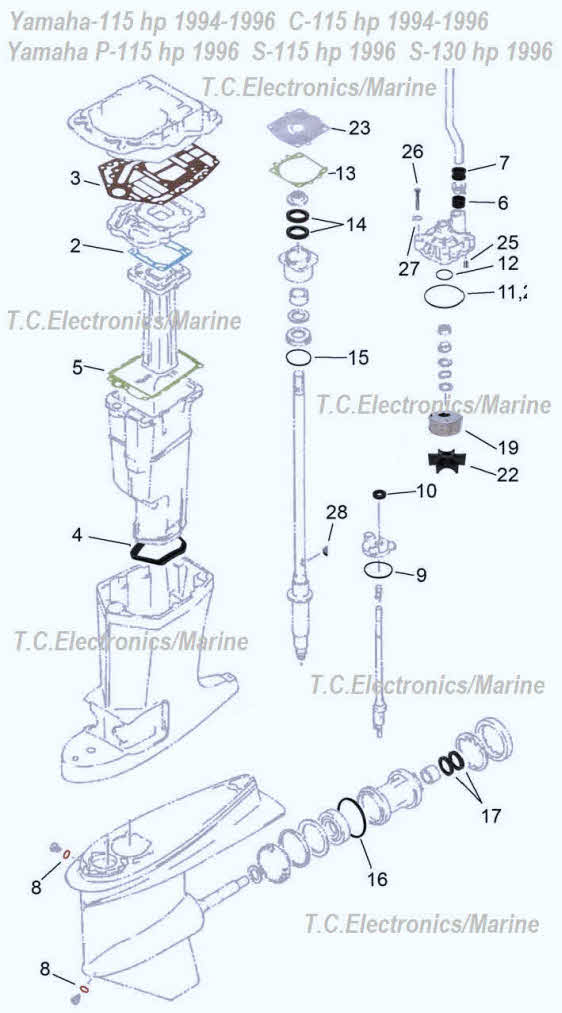

Yamaha outboard parts drawing 115 - 130 hp.

115 hp. years 1994, 1995 and 1996 C-115 hp. years 1994 to 1996 P-115 hp.
S-115 hp. and S-115 hp. year 1996 S-130 hp. year 1996

  • Yamaha outboard parts drawing 115 and 130 hp. for V4 power-head.
  • Parts include power-head gaskets, lower unit oil seal, o-rings and gaskets.
  • Water pump kits include impeller and key.
  • Magnetic oil pump screw and seal are all so listed as item number 8

Exploded view lower unit drawings
Photo or index page



Search by part number or description here

This site  The Web

115 hp
115 hp

87838 115hp and 130hp 6E5-W0001-F1 and 6E5-W0001-51
87838 115hp and 130hp 6E5-W0001-F1 and 6E5-W0001-51

Item 1

P/N 87838 Lower Unit Gasket Kit OEM 6E5-W0001-F1-00



Item 2

P/N 38030 Gasket Exhaust Manifold OEM 6E5-41134-A0-00




Item 3

P/N 38027 Gasket Upper Casing OEM 6G5-45114-A0-00



Item 4

P/N 38029 Gasket Muffler OEM 6E5-45123-00-00



Item 5

P/N 38028 Gasket Exhaust Manifold OEM 6E5-41135-A0-00



Item 6

P/N 38300 Damper Water Seal OEM 6E5-44365-00-00



Item 7

P/N 38301 Damper Water Seal OEM 6E5-44366-00-00



Item 8

P/N 38015 Gasket OEM 90430.0 020-00



Item 9

P/N 84240 O-ring OEM 93210-58677-00



Item 10

P/N 85223 Oil Seal OEM 93106-09014-00



Item 11

P/N 84295 O-ring OEM 93210-86M38-00



Item 12

P/N 84300 O-ring OEM 93210-37M67-00

38000 Water pump gasket
38000 Water pump gasket

Item 13

P/N 38000 Gasket Water Pump OEM 6E5443150-00



Item 14

P/N 85222 Oil Seal OEM 93101-28M16-00



Item 15

P/N 84215 O-ring OEM 93210-54534-00



Item 16

P/N 84250 O-ring OEM 93210-86M39-00



Item 17

P/N 85221 Oil Seal OEM 93101-30M17-00

M-12264
M-12264

Item 18

P/N 12264 water pump repair kit OEM 6N6-W0078-00-00

12870 cup
12870 cup

Item 19

P/N 12870 Insert Cartridge OEM 61A-44322-00-00



Item 20

P/N 84295 0-ring OEM 93210-86M38-00



Item 21

P/N 84300 0-ring OEM 93210-37M67-00

89930 impeller
89930 impeller

Item 22

P/N 89930 Impellers OEM 6E5-44352-00-00



Item 23

P/N 12522 Outer Plate Cartridge OEM 6E5-44323-00-00



Item 24

P/N 38000 Gasket Water Pump OEM 6E5-44315-A0-00

12808 Dowel pin
12808 Dowel pin

Item 25

P/N 12808 Pin Dowel OEM 93606-12019-00



Item 26

P/N 22502 Bolt OEM 97095-08045-00



Item 27

P/N 22506 Washer OEM 90209-08MO2-00



Item 28

P/N 12074 Water pump housing

12299 C115 hp 1993-1996
12299 C115 hp 1993-1996

Item 29

P/N 12299 Complete water pump kit OEM 6N6-W0078-00-00 + 61A44311-00-00

89588 Woodruff key half moon
89588 Woodruff key half moon

Item 30

P/N 89588 Key Woodruff OEM 90280-04M05-00
