GLM aftermarket Mercruiser parts thrust ring for lower unit gearcase

  • Mercruiser thrust ring hold reverse gear bearing in bearing carrier
  • GLM part #23141  OEM #35915

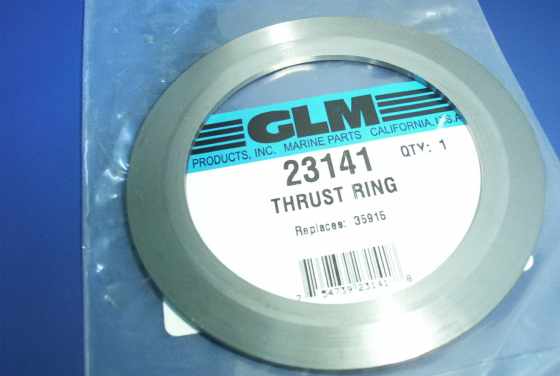

W 23141 Mercruiser thrust ring.jpg
23141 Mercruiser thrust ring

#23141 Thrust ring $15.29
