Mercruiser stainless steel bolt to fasten upper gearcase

GLM Marine aftermarket stainless steel allen bolt used to fasten lower gearcase to upper gearcase

  • GLM marine product bolt number 22430 OEM # 10-30206
  • Fasten lower gearcase to upper gearcase
  • Stainless steel bolt pack in unit of one
  • One of six bolts that holds lower unit to upper gearcase
  • Tech support Exploded view drawings

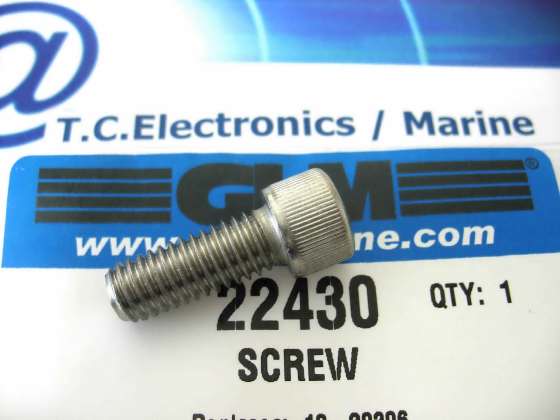

22430 allen bolt

22430 allen bolt

$4.95

Customers who bought P/N 22430 also purchased:

87510 lower seal kit

87510 lower seal kit

P/N GLM 87510 Mercruiser outdrive lower unit seal kit $42.95 M1 / R / MR / Alpha 1 years 1964 to 1990 Serial numbers 1684188 - OD469858

21950
21950

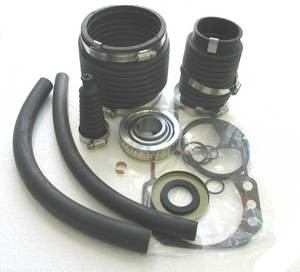

P/N 21950 Mercruiser bellows kit MR / Alpha 1 years 1970 to 1990 $145.95
