GLM Marine aftermarket Mercruiser water pump part impeller key
  • GLM aftermarket Mercruiser water pump impeller # 89840 use with Mercruiser 1, MR, and Alpha one outdrives
  • OEM # 47-89984T4
  • Change every 2 to 3 years use grease when installing and turn drive shaft clockwise when pushing down on case at the same time.
  • If help is required, contact our service tech (416) 751-7326 for advice troubleshooting your Mercruiser stern drive
  • Mercruiser impeller  for water pump
Aftermarket Mercruiser parts

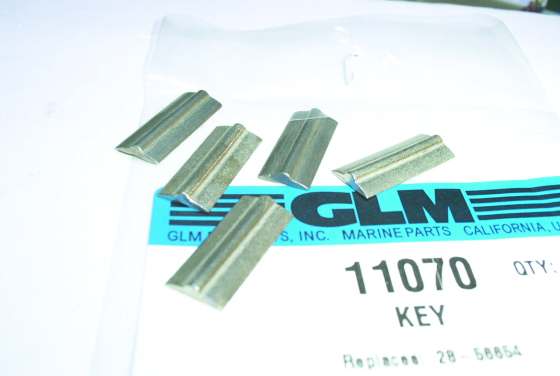

#11070 GLM aftermarket Mercruiser part impeller keys (1 unit) OEM #28-56654 $4.29
