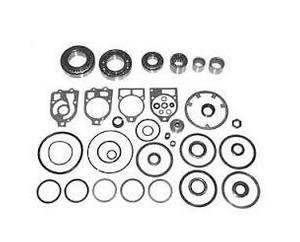

GLM Marine aftermarket Mercruiser parts kit # 25110 contains lower gearcase stern drive gaskets, seals, bearings and shims

GLM aftermarket Mercruiser parts included in kit # 25110 OEM # 31-803068T1 contains the following items

  • Bearing carrier bearing # 11410 OEM # 3130956
  • Water pump gaskets
  • Water pump o-rings
  • Reverse gear ball bearing # 21620 OEM # 30-88957A1
  • Upper drive shaft tapered roller bearing # 21570 OEM # 31-53079A1
  • Forward gear tapered roller bearing # 21590 OEM # 31-35928A1
  • Drive shaft bearing # 21600 OEM # 31-92366A1
  • Shim # 23300 OEM # 15-57007A
  • Shim # 23290 OEM # 15-97166
  • Pinion nut # 11190 OEM # 11-35921
  • Tab washer # 11380 OEM # 14-79447
  • Seal kit # 87510 OEM # 26-33144A2
  • Mercruiser parts and tech drawings for upper and lower gearcase
Mercruiser parts kit upper gearcase 1973 thru 1983

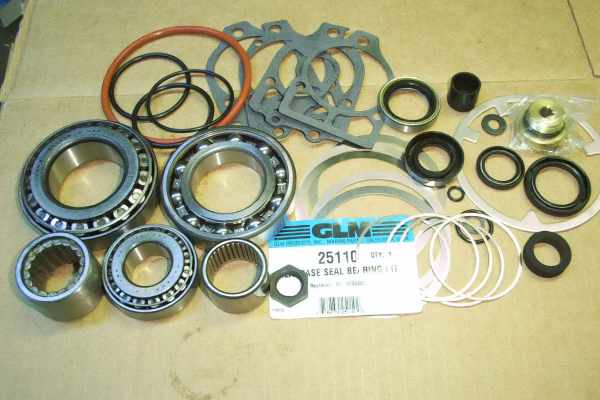

WC 25110 Mercruiser parts kit seals bearings shims.jpg
25110 Seal kit, shims and bearings for upper gearcase

# 25110 Mercruiser parts kit lower gearcase OEM # 31-803068T1 $176.98
