Evinrude/Johnson outboard powerhead gasket kits

GLM aftermarket OMC, Johnson / Evinrude powerhead gasket sets years 1972 & up

  • Tech consultant number for T.C.Electronics/Marine (416) 751-7326
  • GLM aftermarket outboard powerhead gasket seals to be installed should used 680 Loctite retaining compound
  • Powerhead gaskets should be used with BRP/OMC 508235 gasket sealing compound that never hardens or dries out

Exploded view lower unit drawings
Photo or index page



Search by part number or description here

This site  The Web

powerhead gaskets
hp and year
39380
39380

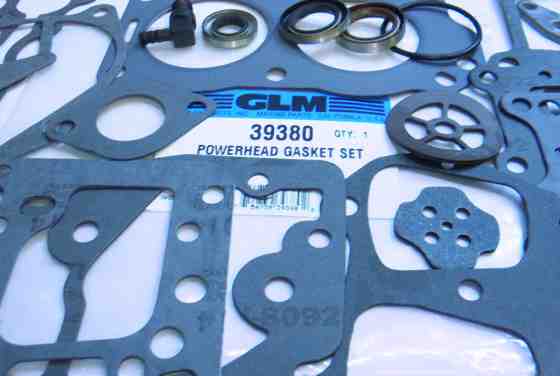

P/N 39380 2 Cylinder 9.9 and 15 hp. 1974 to 1992 $25.29
Click here for photo

39353
39353

P/N 39353 2 Cylinder $30.29

9.9 and 15 hp. Years 1993 to 2011

39420
39420

P/N 39420 2 Cylinder $48.89

20, 25, 28, 30 hp. 1979 up

35 hp. 1979 to 1986

39370
39370

P/N 39370 2 Cylinder $83.89

40, 45, 48 and 55 hp. Years 1980 to

50 hp. years 1971, 1972, 1973, 1974 and 1975

55 hp. year 1976

55 hp. years 1977, 1978 and 1979

50 hp. year 1980

55, 60 hp. years 1980, 1981, 1982, 1983, 1984 and 1985

Photos of all parts included

39355
39355
P/N 39355 2 Cylinder $31.29
40 hp. Commercial
Years 1983, 1984, 1985 and 1986

39390
39390

P/N 39390  3 Cylinder $48.89

50 hp. year 1995

60 hp. 1989 - up

65 hp. 1987 - up

70 hp. 1986 - up

Head gasket is included in set

39350
39350

P/N 39350 3 Cylinder $75.89

60 hp. years 1986, 1987 and 1988

65 hp.  use 33400 head gasket plus P/N 1972 to 1973

65 hp. 1984, 1985 and 1986

70 hp. 1974-1975-1976-1977-1978-1979-1980-1981-1982-1983-1984 and 1985

39360
39360

P/N 39360 V- 4 Cross $73.89

85 hp. 1973 to 1977

115, 135 and 140 hp. use 33540 head gasket
plus P/N 39360


Years 1973 to 1977

39080
39080

P/N 39080 V 4 Cross $102.89

85, 88, 90, 110 and 115 hp. 1979 to

100, 115 and 140 hp. 1978 to 1984

115 hp. year 1985

39400
39400

P/N 39400 V-4 Loopcharged 90 degree $95.89

120, 140 hp. years 1988 to 1994

130 hp. year 1995

39354
39354

P/N 39354 V- 4 Loopcharged 90 degree $89.29

120, 140 hp. years 1985, 1986 and 1987

39351
39351

P/N 39351 V 4 Loopcharged 60 degree $129.29

90 hp. to 115

Years 1995 up

# 39351 $129.29

39356
39356

P/N 39356 V- 4 Loopcharged 60

90 hp. to 115 with FFI Years 1998 to $72.29

39350 gasket set
39350 gasket set

P/N 39090 V-6 Cross 90 degree $103.89

150 hp. 1978 to 1991

155 hp. 1986 to 1991

175 hp. 1977 to 1985

185 hp. 1984 and 1985

200 hp. 1976 to 1983

235 hp. 1978 and 1979

39430
39430

P/N 39430 V- 6 Crossflow 90 degree $135.89

175 hp. 1986 to 1991

235 hp. 1980 to 1985

39070
39070

P/N 39070 V-8 $194.29

275 hp. and 3.6 liter years 1985 to 1993 OEM only

200 and 250 FFI year 2001 OEM only

250, 275 and 300 hp. Special years 1988 up

39352
39352

P/N 39352 V 6 Loopcharged OEM 6039352 $148.29

150-175 V6

1991 to 1999

39930
39930
P/N 39930 V-6 Loopcharged 90 degree power head gasket kit $112.29
200, 225 hp. 1985, 1986 and 1987

39410
39410

P/N 39410 V-6 Loopcharged 90 degree $112.89

200, 225 hp. 1988 to 1993

39510
39510

P/N 39510 V-6 Loopcharged 90 degree $142.29

200, 225 hp. 1994 to 2001
