Johnson outboard powerhead gasket set 90-115 hp

Powerhead gasket 90 - 115 hp. with carburetor fuel system
years 1995 plus

  • OMC / Evinrude/Johnson power-head gaskets should be used with gasket sealing compound
  • Note gasket sealing compound not required when installing the head gasket
  • Seals to be installed should be used with 680 Loctite retaining compound
  • Carburetor fuel system for V4 60 degree loop-charged
  • 90 to 115 hp. Johnson outboard power head gasket kit years 1995 and up OEM 439559
  • P/N 39351 Kit does not include head gaskets
  • Exploded view Johnson lower unit drawings

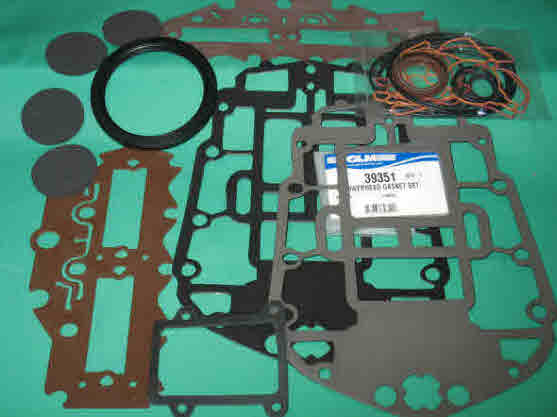

39351 gasket 90-115 hp

39351 gasket 90-115 hp.

P/N 39351 Evinrude/Johnson power-head gasket set $141.95
