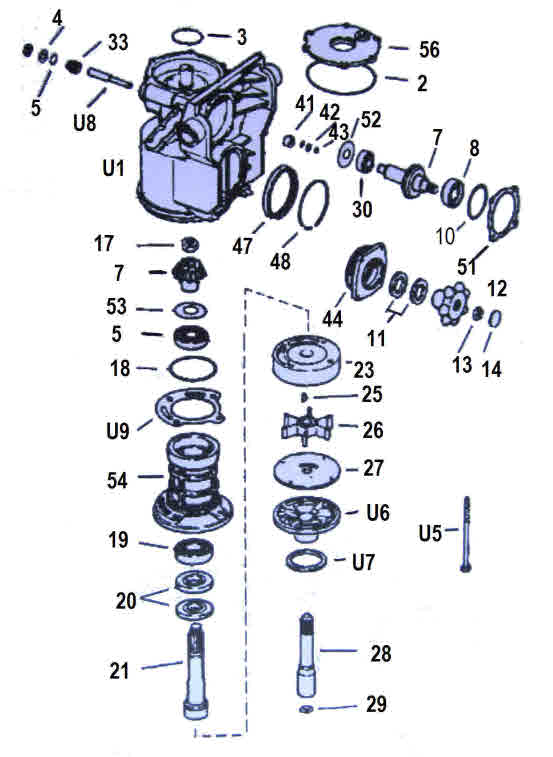

OMC high profile parts drawing *800 upper gearcase

Stringer high profile OMC parts drawing
800 series upper gearcase

Tech support help for 400 and 800 series gearcase

OMC 800 series high profile drawing

OMC 800 series high profile drawing

Need OMC outdrive components not listed see Marine engine.com for added information
Used parts may be available please contact order desk for availability.



27000 Aftermarket OMC stern drive case
OEM OMC stern drive case
New OEM OMC 800 series high profile upper gearcase with hole for steering. $995.00

rebuilt
rebuilt
Click here for details on our remanufactured units Rebuilt upper gearcase case assembly parts with new gears, drive shaft, water pump shaft, housing, bearings, ball bear, seals and water pump housing with total parts value of $1267.09

21/16
5.7 liter Ford / 5.8 liter Chevy $1595.09 after trade in

21/17
5.0 liter 302 Ford / 305 Chevy $1595.09 after trade in

21/18
All 4 cylinder $1595.09 after trade in

21/19
4.3 Liter 262 V6 or 165 hp inline six cylinder $1595.09 after trade in

21/20
3.8 Liter 229 V6 $1595.09 after trade in

22510 21-16 gear set
22510 21-16 gear set
Item 7
P/N 22510 Gear set 5.7 liter V8 - 21/16 / 982261 $829.15

P/N 22512 Gear set 5.0L V8 - 21/17 / 982259 $749.15

P/N 22530 Gear set 3.8 liter V6 - 21/20 / 982835 $699.15

P/N 22514 Gear set 4.3. V6 or 165 hp. in line 6 cylinder engines - 21/19 / 984262 $699.15

21544
21544
Item 8
P/N 21544 ball gear retainer / 382212 $59.15

21545 Bearing
21545 Bearing
Item 9
P/N 21545 400-800 Bearing OEM 379585 $76.00

22020

22020

Item 12
P/N 22020 Upper housing ball gear / 908069 $130.15
For complete ball gear kit, click here
upper gearcase parts removal and shimming

87650 1973-1985 seal kit

87650 1973-1985 seal kit

Parts included in seal kit:

3 O-ring 82250
4 O-ring 82250
4 O-ring 82140
5 Quad ring 42140
6 Quad ring 41120
10 O-ring 82350
11 Oil seal 86080
13 Nut 22330
14 Cover 22030
15 Gasket 34180
16 Gasket 33050
17 Lock nut 22310
18 O-ring 82360
20 Oil seal 86090
22 Shaft seal 86100
24 O-ring 82520
29 O-ring 80220

P/N 87650 Seal kit / 982949 $53.09

87651
87651
P/N 87651 Seal kit 1968 to 1972 with press on ball gears / 981799 $49.00

21546
21546
Item 19
P/N 21546
Bearing / 382165 $24.15

22422 drive shaft high profile v8 v6
22422 drive shaft high profile v8 v6
Item 21
P/N 22422 (High profile) / 981220 $384.15

22423
22423
Item 21
P/N 22423 High profile drive shaft for 4 cylinder engine / 382883 $299.15

12390
12390
Item 23
P/N 12390
Pump housing part included in water pump kit OEM-983298 $45.09

89595 key
89595 key
Item 25
P/N 89595 Key / 308928 $6.09

89760 Impeller
89760 Impeller

Item 26
P/N 89760 800 series impeller removal & installation video OEM-379475 $25.00
See our complete impeller kit here

22411 Water pump shaft high profile

Water pump shaft high profile

Item 28
P/N 22411
Pump drive shaft (Long) / 908087 $228.15

T 12190 Water pump kit.jpg
12190 Water pump kit
Item 28
P/N 12190
water pump kit with impeller / 983218 $77.00

21547
21547
Item 30
P/N 21547
400-800 Bearing / 375761 $61.15


Item 31
P/N 22329
Screw / 305282 $4.09

27970 Bracket
27970 Bracket
Item 32
P/N 27970
Bracket / 908870 $88.09

27990 Retainer
27990 Retainer
Item 33
P/N 27990
Retainer / 908871 $31.09

28450-28440 stern drive covers
28450-28440 stern drive covers
Item 37
P/N 28440
water cover port / 308699 $21.09

Item 38
P/N 28450
Water cover starboard / 308591 $16.09

21731 Draining screw washer
21731 Draining screw washer
Item 39
P/N 21731
Draining screw (magnetic) / 318544 $9.00

T 27820 Steering bushing OEM 308883
27820 Steering bushing OEM 308883
Item 41
P/N 27820
Bushing / 308883 $9.09

27830 Retainer ring
27830 Retainer ring
Item 43
P/N 27830
Retaining ring / 911317 $16.95
27960 Bearing retainer
27960 Bearing retainer
Item 44
P/N 27960
Ball gear bearing retainer / 313184 $89.00

22327 Bolt
22327 Bolt
Item 46
P/N 22327
Screw / 909386 $4.09

86652 Seal 11056 Spring
86652 Seal 11056 Spring
Item 47 & 48
P/N 86652 & 11056
Seal & spring / 308768 & 308590 $10.09

22515 Centering cone
22515 Centering cone
Item 49
P/N 22515
Centering cone / 909123 $19.09

27950 Bearing housing 800 series
27950 Bearing housing 800 series
Item 50
P/N 27950
Bearing housing / 910240 $137.00

23310 Shim Kit
23310 Shim Kit
Item 51
P/N 23310
Shim kit 5 sizes $15.00

23320
23320
Item 52
P/N 23320
Shim kit 6 sizes $15.00

23330
23330
Item 53
P/N 23330
Shim kit 8 sizes $20.00

27860 Upper gearcase top
27860 Upper gearcase top
Item 56
P/N 27860
Cover / 313228 $88.00

22307
22307
Item 57
P/N 22307
Screw OEM-909638 $4.09
