  • Thrust-washer, roller, ball, taper and thrust are OEM parts.
  • Timken bearings are sold as a set with both the outside
    race and inside cone.
  • GLM Marine aftermarket heavy duty gimbal holds 20% more grease
    with 2 year warranty.
  • OMC Cobra install video with shimming help with 400-800
  • Gear puller pinion install and removal tools.

Exploded View Drawings
Photo and index page

Search by part number or description here

This site  The Web

OMC Cobra installation video upper gear-case



Bearing puller and Pinion install-remove tool

90150 Gear and bearing puller
90150 Gear and bearing puller

P/N 90150 Five inch universal gear-puller plate OEM-37241 $106.89

90295 Pinion removal and install kit
90295 Pinion removal and install kit
90295 Slide threaded bolt down thru old drive shaft bearing
90295 Slide threaded bolt down thru old drive shaft bearing

P/N 90295 Lower unit drive shaft pinion puller $68.89

90280 puller rod
90280 puller rod

P/N 90280 Bearing bolt installer-remover OEM 91-31229 $15.89

90270 volvo omc cobra sx pinion bearing tool
90270 volvo omc cobra sx pinion bearing tool

P/N 90270 Removes pinion bearings from lower sterndrive $11.89

90295 Pinion removal and install kit
90295 Pinion removal and install kit

P/N 90260 Installs pinion bearings in sterndrives $22.89


400-800-series upper gearcase drawing
21544 Ball gear retainer bearing
21544 Ball gear retainer bearing

P/N 21544 OMC 400-800 Stringer upper ball gear retainer OEM-382212 $53.29

27820 Bronze bushing for OMC 400 800
27820 Bronze bushing for OMC 400 800

P/N 27820 Bronze bushing for OMC 400-800 Stringer upper gear-case steering OEM-308883 $9.09

21545 Pinion bearing
21545 Pinion bearing

P/N 21545 OMC 400-800 upper driven gear OEM-379585 $69.09

21546 Drive shaft OEM 382165
21546 Drive shaft OEM 382165

P/N 21546 Drive shaft OEM-382165 $20.09

21547 OMC 400 800 small rear unit in back of upper gearcase on ball shaft
21547 OMC 400 800 small rear unit in back of upper gearcase on ball shaft

P/N 21547 OMC 400-800 small rear unit in back of upper gearcase on ball shaft OEM-375761 $51.09

27950 Bearing housing 800 series
27950 Bearing housing 800 series

P/N 27950 400-800 retainer housing $125.09

27960 Bearing retainer
27960 Bearing retainer

P/N 27960 Ball gear retainer OEM-313184 $81.09

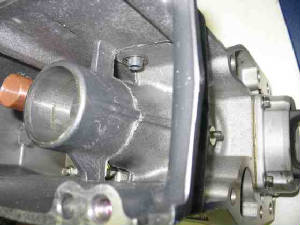

400 800 Upper gearcase housing
400 800 Upper gearcase housing

P/N 27000 Empty upper gearcase OEM-982226 $999.09



400-800 Intermediate housing

21512 Intermediate housing Timkin
21512 Intermediate housing Timkin

P/N 21512 *Note 2 units are required for intermediate housing shaft OEM-3854250 $27.09 each


OMC Cobra drawing
16340 Forward Gear trust bearing OEM 389042
16340 Forward Gear trust bearing OEM 389042

P/N 16340 Forward Gear thrust bearing OEM 389042 $39.29

Cobra bearings for lower unit

22950 Prop shaft 1.250 inch bearing for carrier years 1991-1992-1993 OEM 434467

P/N 22950 Prop shaft 1-1/4 inch for carrier years 1991, 1992 and 1993 OEM 434467 $20.29

21644 Thrust washer for forward gear for 4 cylinder

P/N 21644 Thrust washer for forward gear for 4 cylinder with smaller hubs of 3-3/4 inch inside diameter OEM-324766 $30.09

16310 Thrust for forward gear  for 4 cylinder Cobra lower unit
16310 Thrust for forward gear for 4 cylinder Cobra lower unit

P/N 16310 Thrust for forward gear for 4 cylinder Cobra lower unit gearcases with smaller propeller hub of 3-3/4 inch inside diameter OEM-385043 $17.09

22880 Drive shaft roller Torrington for 4 cylinder Cobra lower
22880 Drive shaft roller Torrington for 4 cylinder Cobra lower

P/N 22880 Drive shaft roller Torrington for 4 cylinder Cobra lower unit gearcases with smaller propeller hub of 3-3/4 inch inside diameter years 1986 to 1989 with 3 Litre and 1987 to 1990 with 2.3 litre OEM-384195 $15.09

22730 Bearing housing Johnson parts
22730 Bearing housing Johnson parts

P/N 22730 Housing with seals OEM-982422 $102.09

27700-27720 housing bearing detent
27700-27720 housing bearing detent

P/N 27700 Forward housing & assembly OEM-389455 $168.09

22910 Forward gear OEM 389039

P/N 22910 Forward gear OEM-389039 $55.09

22870 V6-V8 Reverse gear Torrington B2414 propeller shaft carrier
22870 V6-V8 Reverse gear Torrington B2414 propeller shaft carrier

P/N 22870 Revers gear OEM-382407 $16.09

21645 Drive shaft thrust washer
21645 Drive shaft thrust washer

P/N 21645 Thrust washer OEM-327656 $7.09

21642 Thrust washer reverse

P/N 21642 Thrust washer OEM-314731 $11.09

21610 Drive shaft bearing
21610 Drive shaft bearing

P/N 21610 Pinion OEM-387817 $32.09

16330 Drive shaft thrust bearing
16330 Drive shaft thrust bearing

P/N 16330 Thrust bearing OEM-387656 $25.09

21646 Thrust washer
21646 Thrust washer

P/N 21646 Thrust washer OEM-327669 $26.89

16300 Thrust unit OEM 382408
16300 Thrust unit OEM 382408

P/N 16300 Thrust unit OEM #382408 $5.09

11410 Outer bearing OEM 31-30956
11410 Outer bearing OEM 31-30956

P/N 11410 Propeller shaft OEM-387247 $10.09

27770 Cobra lower gearcase housing
27770 Cobra lower gearcase housing

P/N 27770 retainer OEM-984462 $83.09


OMC Cobra upper gearcase drawing
21542 Cobra drive shaft Timken
21542 Cobra drive shaft Timken

P/N 21542 Bearing OEM-983877 $65.09

21543 Cobra rear water pump bearing
21543 Cobra rear water pump bearing

P/N 21543 Rear shaft by water pump OEM-983878 $41.09

21541 Cobra lower pinion bearing
21541 Cobra lower pinion bearing

P/N 21541 lower driven gear unit OEM-983892 $41.09

P/N 21540 Cobra top driven gear location on carrier OEM-983891 $34.09

27920 Cobra yoke carrier u-joint shaft
27920 Cobra yoke carrier u-joint shaft

P/N 27920 Carrier OEM-911683 $72.09



OMC Cobra transom mount gimbal



P/N 21905 Transom mount gimbal bearing drawing Click Here OEM-3853807-0 $44.29



OMC electric shift outdrive lower unit

bh1812
bh1812

P/N 22860 OEM-379504 or MFG-P/N BH1812 $27.09

86643-86610

Drive shaft top Timkin cone and race for 1972 to 1977 OEM 86643, 86610 $56.89



Volvo Penta Cobra SX upper

21512 Tapered roller bearing upper SX drive shaft OEM 3854250
21512 Tapered roller bearing upper SX drive shaft OEM 3854250

P/N 21512 Tapered roller bearing upper SX drive shaft OEM-3854250 $27.09

21581 Tapered roller lower drive shaft upper gearcase and lower

P/N 21581 Tapered roller for lower drive shaft in upper gearcase and lower gearcase rear in Cobra SX OEM-3854249 $25.29

21611 Drive shaft roller Torrington
21611 Drive shaft roller Torrington

P/N 21611 Pinion bearing Cobra SX OEM-3853934 $46.29

21586 Tapered roller front OEM 3850942

P/N 21586 tapered roller front OEM-3850942 $87.29
