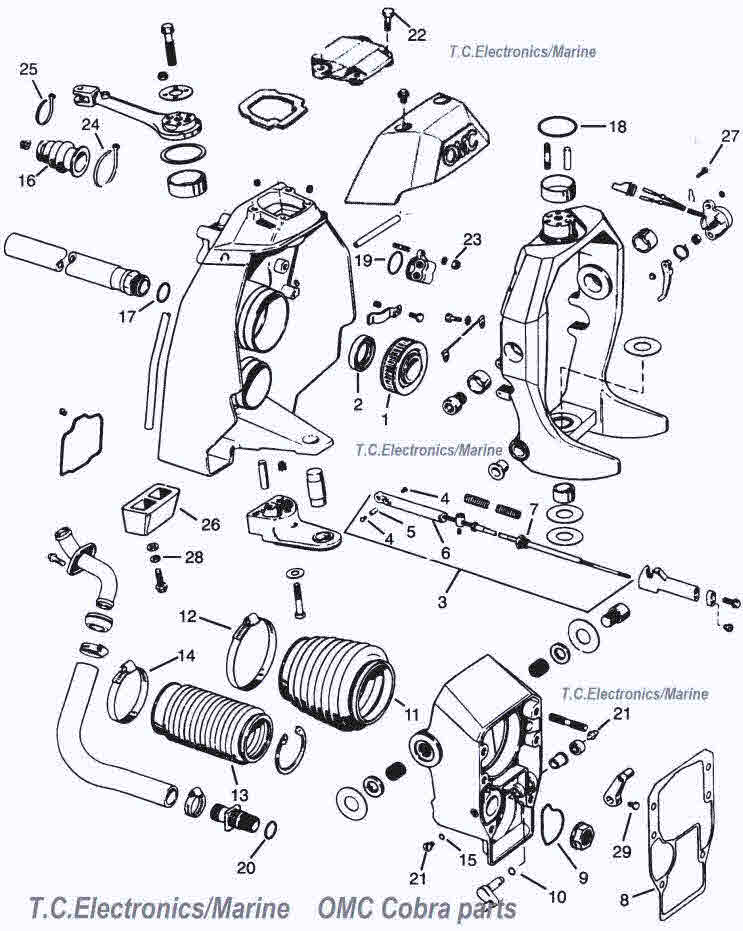

OMC Cobra parts listing
Transom mount components

Take this link for OMC Cobra parts
Take this link to Cobra transom parts for OMC stern drive units

Click for larger picture
#
Item with GLM number
T-21900 Gimbal bearing.jpg
21900 Gimbal bearing
# 1

# 21900 Gimbal bearing OEM # 983937 $48.79

T 87650 Oil seal aftermarket OMC parts.jpg
# 86560 Oil seal aftermarket OMC parts
# 2

# 86560 Oil seal OEM # 3852548 $11.79

T 21715 Shift cable.jpg
21715 Shift cable
# 3

# 21715 Shift cable assy. OEM # 987661 $91.79

T 21433 Set screw.jpg
21433 Set screw
# 4

# 21433 Set Screw OEM # 912304 $8.79 (10 Units)

T 21432 anchor.jpg
21432 anchor
# 5

# 21432 Anchor OEM # 915918 $4.79

T 21434 Guide.jpg
21434 Guide
#6

# 21434 Guide OEM # 914742 $7.79


# 7

# 80140 O-Ring OEM # 304174 $4.79 (5 Units)

T 39630 Gasket kit OEM 508105.jpg
39630 Gasket kit OEM 508105
# 8

# 34730 Gasket OEM # 915840 $4.79


# 9

# 86300 Seal OEM # 3852560 $13.79 (5 Units)


# 10

# 80120 O-Ring OEM # 202893 $4.79 (5 Units)

T 89200 U joint bellow.jpg
89200 U joint bellow
# 11

# 89200 U-Joint Bellow OEM # 3854127 $33.79


# 12

# 01090 Clamp OEM # 912667 $4.79

T 89190 OMC Cobra exhaust bellows.jpg
89190 OMC Cobra exhaust bellows
# 13

# 89190 Exhaust bellow OEM # 914036 $27.79

T 01070 Hose clamp.jpg
01070 Hose clamp
# 14

# 01070 Clamp OEM # 912628 $4.79

80100 o ring-5 units.jpg
80100 o ring-5 units
# 15

# 80100 O-Ring OEM # 911311 $4.79 (5 Units)

T 89210 Shift cable bellow.jpg
89210 Shift cable bellow
# 16

# 89210 Shift cable bellow OEM # 911826 $7.79

81230 O ring.jpg
81230 O ring
# 17

# 81230 O-Ring OEM # 911871 $4.79 (5 Units)

T 82260 o ring.jpg
82260 o ring
# 18

# 82260 O-Ring OEM # 302337 $4.79 (5 Units)

T 81250 O ring.jpg
81250 O ring
# 19

# 81250 O-Ring OEM # 322501 $4.79 (5 Units)


# 20

# 81210 O-Ring OEM # 911718 $13.79 (5 Units)


# 21

# 27786  Fitting OEM # 313607
coming soon



# 22

# 22303  Screw OEM # 909636
coming soon



T 21180 lock nuts.jpg
21180 lock nuts
# 23

# 21180 Lock Nut OEM # 121731 $5.79 (5 Units)


# 24

# 24165 Tie Strip OEM # 320107 $4.79

T 21466 Tie.jpg
21466 Tie
# 25

# 21466 Tie Strip OEM # 317893 $4.79

T 21962 OMC Cobra bellows transom service kit.jpg
21962 OMC Cobra bellows transom service kit
# 26

# 21962 Transom service kit $132.79
 #21962 OMC Cobra bellows transom service kit

  1. Gasket Kit # 39630
  2. Shift Cable Bellow
  3. U-Joint Bellow
  4. Exhaust Bellow
  5. Hose Clamp (1)
  6. Hose Clamp (2)
  7. Gimbal Bearing
  8. Cable Tie (1)
  9. Cable Tie (2)
Print

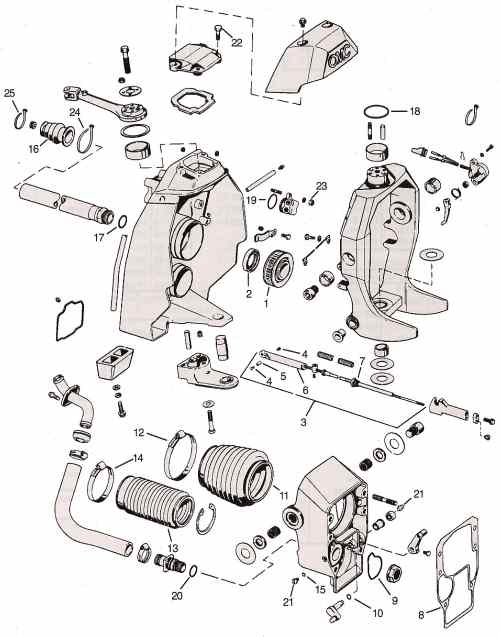

OMC COBRA PARTS LISTING
Parts In Transom Service Kit *
1 Gimbal bearing #21900*
2 Oil seal #86560
3 Shift cable #21715
4 Set screw #21433
5 Anchor #21432
6 Guide #21434
7 O-ring #80140
8 Gasket #34730*
9 Seal #86300
10 0-ring #01120
11 U-joint bellow #89200*
12 Clamp #01090*
13 Exhaust bellow #89190*
14 Clamp #01070*
15 O-ring #80100
16 Shift cable bellow #89210*
17 O-ring #81230
18 O-ring #82260
19 O-ring #81250
20 O-ring #81210
21 Fitting #27786
22 Screw #22303
23 Lock nut #21180
24 Tie strip #24465*
25 Tie strip #21466
