OMC stern drive water pump parts drawing

Kit listing 400/800 series component drawing

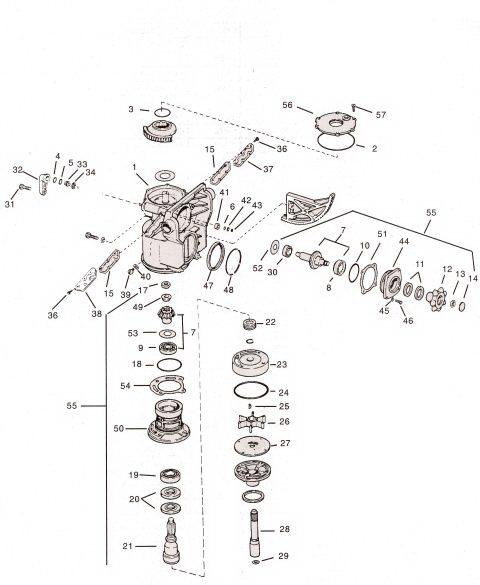

  • Exploded drawing shows water pump kit components relationship with other outdrive parts.
  • Contact our service tech for help with aftermarket OMC parts at (416) 751-7326. Have horsepower / year of boat or marine engine ready.

Exploded View Drawings
Search by part number or description here
omc parts listing
omc parts listing

P/N 12190 Water Pump Kit Parts
1 Upper gearcase # 27000
2 O-ring # 82480
3 O-ring electric shift # 82250
4 O-ring # 82250
4 O-ring # 82140 *
5 Quad ring # 42140 *
6 Quad ring # 41120 *
7 Gear set 5.7 V- 6 # 22510
7 Gear set 5L V- 8 # 22512
7 Gear set 3.8L V- 6 # 22530
8 Bearing # 21544
9 Bearing # 21545
10 O-ring # 82350 *
11 Oil seal # 86080 *
12 Ball gear # 22020
13 Nut # 22330 *
14 Cover # 22030 *
15 Gasket # 34180 *
16 Gasket # 33050 *
17 Lock nut # 22310
18 O-ring # 82360
19 Bearing # 21546
20 Oil seal # 86090 *
21 Drive shaft # 22412
21 Shaft high profile # 22422
21 Shaft high profile # 22423
22 Shaft seal # 86100 *
23 Pump housing # 12390 *
24 O-ring # 82520 *
25 Key # 89595
26 Impeller plate # 89760 *
27 Pump plate # 12590 *
28 Shaft short # 22410
28 Shaft long # 22411
29 O-ring # 80220 *
30 Bearing # 21547
31 Screw # 22329
32 Bracket # 27970
33 Retainer # 27990
34 Retainer ring # 27840
35 Spacer Shaft # 27980
36 Screw # 22328
37 Water cover port # 28440
38 Water cover std. # 28450
39 Screw # 21731
40 Gasket # 31171
41 Bushing # 27820
42 Gasket # 31173
43 Retaining ring # 27830
44 Bearing Retainer # 27960
45 Lock washer # 21492
46 Screw # 22327
47 Seal # 86652
48 Spring # 11056
49 Centering cone # 22515
50 Bearing housing # 27950
51 Shim kit 5 sizes # 23310
55 Bearing retainer # 22570
56 O-Ring # 81160 *

P/N 12190 Water pump kit stern drive OEM 983218 $77.00
