OMC impeller and outdrive parts

400-800 impellers for Stringer outdrive series
Cobra and SX stern drives

  • OMC Cobra water pump impeller
  • and key
  • 400-800 Stringer series water pump kit, impeller and key
  • Impeller removal and installation video help

400-800 Stringer outdrive

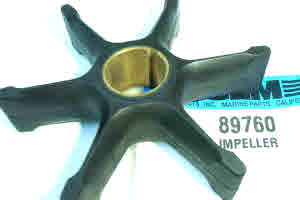

89760
89760

P/N 89760 800-400 Stringer impeller OEM 777130 $24.95

12390 housing
12390 housing

P/N 12390 OEM 983298 Stringer water pump housing with wheel bearing grease. Notice how impeller is much larger than the housing. When inserting into housing turn the pump shaft counter clockwise to install. Click here for OMC 800 series impeller how to videos.

89595 Stainless steel key
89595 Stainless steel key

P/N 89595 Stainless steel key with 1 unit. OEM-308928 $7.95

alobjects.com/en_US/i/scr/pixel.gif" width="1" height="1">

12190 Water pump kit 400-800 stern drive
12190 Water pump kit 400-800 stern drive

P/N 12190 Water pump kit OEM-983218 $77.00

Kit contains the following parts:
Pump housing OEM 983298, seal OEM 907774, plate OEM 313178 and impeller OEM 379475.
Comes with wear plate OEM 911703, O ring OEM 310584, O ring OEM 310585, O ring OEM 314491 and O ring OEM 910238.

22410 Low profile shaft
22410 Low profile shaft

P/N 22410 Low profile shaft OEM 909753



Cobra water pump parts

service kit
service kit

P/N 12091 Stern drive service kit with out the housing OEM-984461 $41.09

12092 GLM Marine aftermarket water pump kit
12092 GLM Marine aftermarket water pump kit

P/N 12092 Complete service kit with housing $49.15 how to video on installing or removal

28320 OMC shaft
28320 OMC shaft

P/N 28320 Cobra yoke and water pump shaft OEM 984264 years 1986 to 1993 $245.09

12405
12405

P/N 12405 Pump housing OEM 984744 $23.09

89950
89950

P/N 89950 Cobra impeller years 1986-1993 OEM-983895 $14.95

47010 housing vent tube
47010 housing vent tube

P/N 47010 vent hose OEM 912614 $12.09

27900 adapter only if required
27900 adapter only if required

P/N 27900 Water pump adapter OEM 911699 $75.09
