GLM aftermarket Mercruiser outdrive Alpha One shift cable assemblies with parts and photos
  • R/MR/Gen 2/ Alpha 1 shift cable kits
  • For technical help, see our YouTube Mercruiser shift cable repair video
  • OEM #865436A03, #865436A02
    •
    W 21450 alpha one shift cable kit.jpg

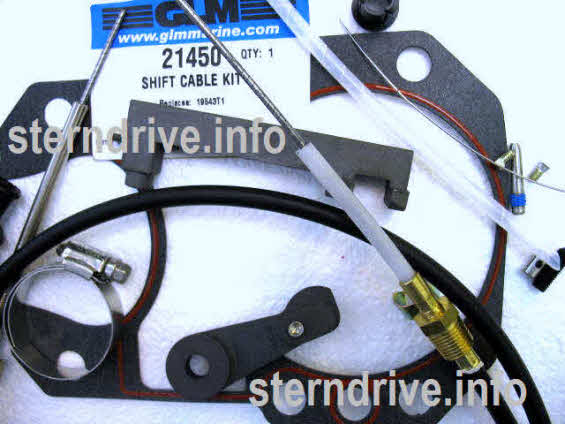

    21450 shift cable kit
    # 21450  $69.29
    Shift cable assembly kit for R, MR, Gen 1 and Generation II. New style cable with large core wire fits newer Mercruisers that install from Aft end of bell housing. Includes bell housing gasket installation kit and shift cable bellow.
    OEM# 19543T2

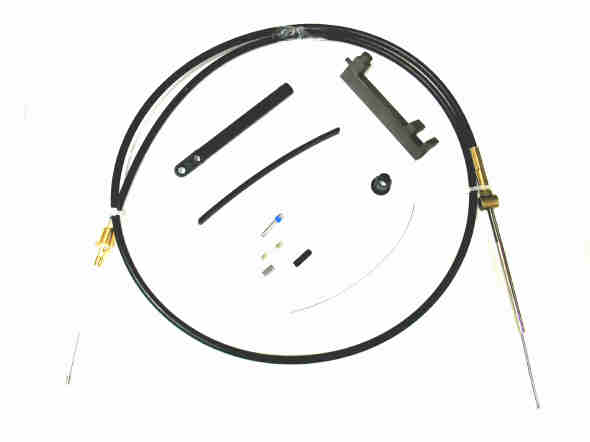

    W 21451 mercruiser shift cable.jpg
    # 21451  $50.29

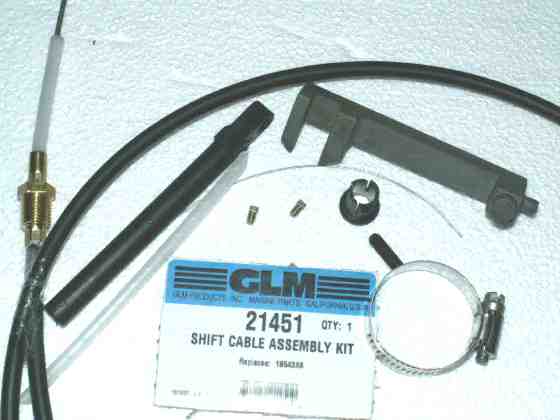

    Shift cable assembly kit - does not include bellow or bell housing gasket installation kit.
    OEM# 19543A10
