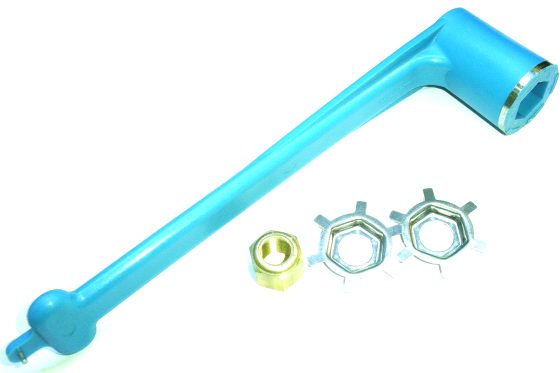

GLM Marine aftermarket Mercruiser Alpha 1 prop wrench kit with prop nut and tab washers
  • OEM number : 91-821887A1
  • GLM Marine part number: 90065
  • Kit includes 1 prop nut and 2 tab washers
  • Wrench floats if dropped in water
  • Prop Wrench Kit identified as part number 70B on Alpha 1 lower gearcase drawing page
W 90065 Alpha 1 Prop wrench kit nut tab washers.jpg
90065 Alpha 1 Prop wrench kit nut tab washers

# 90065 Prop Wrench Kit $12.29
