  • Stringer electric shift lower units with new and used outdrive parts.
  • For technical help, contact our tech, Wayne Coll at 416-751-7326
  • Lower unit OMC parts drawing years 1972 to 1977
  • OMC Electric shift outdrive repair help

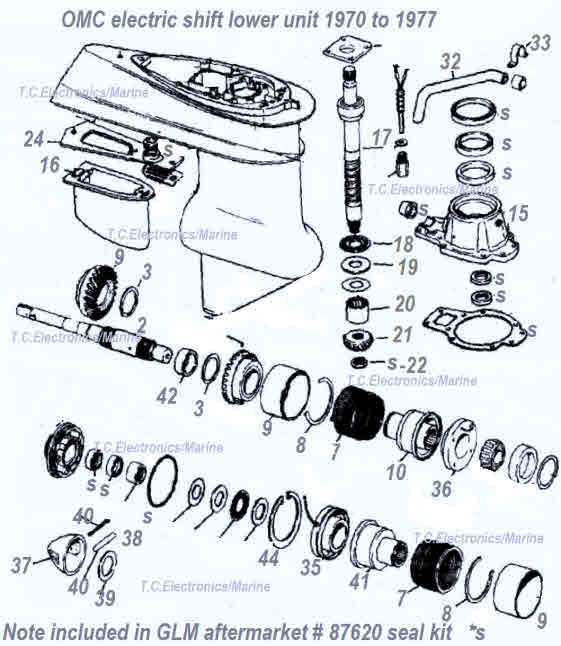

Exploded View Drawings
Photo and index page

Search by part number or description here

This site  The Web

lower gearcase years 1972-1977
lower gearcase years 1972-1977

OMC stern drive gear ratios years 1973 to 1977

Electric shift 1971 to 1977
Electric shift 1971 to 1977

Item 1

P/N 22-404(water pump pick tube and fin not included) Note there are 3 types of pick up tube-fin units. Includes 10 bolt swivel bearing retainer for years 1972 to 1977 Includes rebuilt bearing retainer offset by 1/16 of an inch, 3 seals in bearing retainer OEM 980668 $1195.89

Please Note core deposit is required ($260.00)

For information on repairing your lower unit, see our repair prices

87620 Lower seal kit
87620 Lower seal kit

P/N 87620 GLM aftermarket OMC seal kit years 1972 to 1977 lower gearcase OEM-981797 $36.00

U 26-2011 1972 to 1977 prop shaft
U 26-2011 1972 to 1977 prop shaft

Item 2

P/N 26-2011 1972 to 1977 used prop shaft OEM 382337 and spacer OEM 310428 $195.09



Item 5

P/N 22-235 Reverse gear with hub and clutch spring $299.29



Item 6

P/N 22-533 Forward gear assembly including: bushing OEM-382270, forward clutch hub OEM-382334, clutch spring OEM-313455, spring sleeve OEM-315034 and retainer ring OEM-312007 $349.09

26-2014 OMC 77 gears
26-2014 OMC 77 gears

Item 6

P/N 26-2014 Used OMC Forward gears assembly with pinion gear OEM 313258 and forward gear OEM 382270 years 1972 to 1977 $399.09

used clutch spring
used clutch spring

Item 7

Clutch spring Forward and reverse OEM 313455 $139.09 *after spring trade in

spacer
spacer

Item 8

Spacer OEM-310428 $9.09

stringer spring sleeve
stringer spring sleeve

Item 9

Spring sleeve OEM-315034 $39.09

381849-U gear head assembly
381849-U gear head assembly

Item 11

P/N U-22-540Used gear head assembly OEM 381849 with 3 seals. They have seals located in different areas so any groves on shaft will be locate on new placement area on your used propeller shaft. Gear head assembly has zinc chromate primer with clear coat paint. $179.09

Gear-head rebuild help

27782
27782

Item 15

P/N 27782 New 10 bolt swivel housing years 1972-1977 OEM-980014 $250.09

stringer trim
stringer trim
rudder 1972-1977
rudder 1972-1977
1967-1971
1967-1971
1967-1970
1967-1970

Item 16

Rudder OEM-908226 $35.09

86643-86610
86643-86610

Item 17A

Drive shaft top Timkin bearing cone and race for 1972 to 1977 OEM 86643, 86610 $56.89



 Item 17B

P/N 26-2013 New vertical drive shaft 1972 to 1977 OEM-980097 $395.09

drive shaft 1972 to 1977
drive shaft 1972 to 1977

 Item 17C

P/N 26-2012 Used lower unit vertical drive shaft 1972 to 1977 OEM-980097 $295.09

Note 3 Types
Note 3 Types

Item 17D

P/N 379515 Vertical drive shaft OEM 379515, 382285 before 1972 note $186.89



Item 18

Thrust bearing



 Item 19

Thrust washer OEM-313259 $29.09

21610 bearing
21610 bearing

 Item 20

P/N 21610 Drive shaft bearing OEM-387817 $32.09

Pinion gear
Pinion gear

 Item 21

P/N 313258-U Pinion gear OEM 313258 $115.00

22310 nut
22310 nut

Item 22

P/N 907866 Pinion lock-nut OEM 907866 $15.00

Rudder plate 909016
Rudder plate 909016

Item 23

Rudder plate OEM 909016

wire tube 310644
wire tube 310644

Item 27

Electric wire tube OEM 310644

plate 313309
plate 313309

 Item 28

P/N 313309 Retainer bearing plate OEM 313309 $26.00

Spacer bushing OEM 310488
Spacer bushing OEM 310488

Item 29

Spacer bushing OEM 310488

27931 OMC outdrive cable
27931 OMC outdrive cable

 Item 31

P/N 27931 cable OEM-379628 $91.89

Water tube 908228
Water tube 908228

 Item 32

P/N 908228 Inlet water tube OEM 908228 $22.95

Clamp
Clamp

Item 33

P/N 313729 Clamp OEM 313729 $6.00



Item 34

P/N 908889-U Used water tube spacer OEM-908889 $9.89

reverse coil
reverse coil

Item 35
Labeled wrong on drawing shows 36 located between 41 and 44

P/N 382367-U reverse coil OEM 382367 $150.09
