OMC electric shift seal kit *1967 to 1977

Electric shift outdrive lower unit seal kit

  • Works with all 4, 6 and 8 cylinder engine models
  • Always use type 'C' oil in the OMC electric shift lower unit
  • Seal kit includes all oil seal, o rings and gaskets
  • Note Seal kit comes with 10 bolt swivel housing gasket for years 1971 to 1977 how ever it can be modified to fit 8 bolt pattern for years 1968 to 1970
  • Exploded View OMC Drawings Search by part number or description here

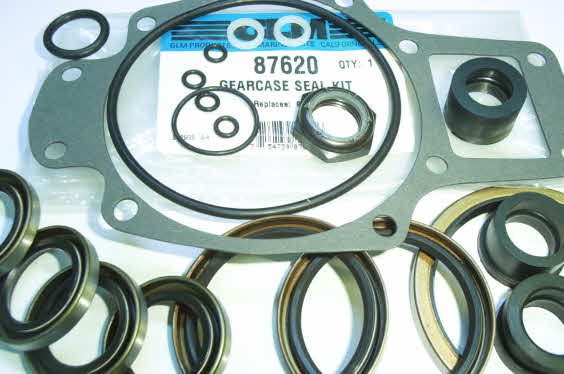

87620 GLM aftermarket seal kit

87620 GLM aftermarket seal kit

P/N 87620 Seal Kit $45.99



OMC Stringer electric shift description

85110 oil seals propeller and drive shaft
85110 oil seals propeller and drive shaft

P/N 85110 Oil seal (4 units) OEM-310599
propeller shaft and drive shaft use 2 each

86050
86050

P/N 86050 Swivel housing lower oil seals OEM-313353 (2 units)

86040 oil seal
86040 Swivel bearing retainer upper seal

P/N 86040 Swivel bearing retainer upper seal OEM-310649

33010 Swivel housing gasket 10 bolt
33010 Swivel housing gasket 10 bolt

P/N 33010 Swivel housing gasket (10 bolt model only) OEM-313368

Propeller shaft bearing retainer large o-ring
Propeller shaft bearing retainer large o-ring

Propeller shaft bearing retainer large o-ring

Bearing retainer 0-rings for screws
Bearing retainer 0-rings for screws

Bearing retainer 0-rings for screws OEM-307853 (4 units)

22310 Stringer electric shift pinion nut
22310 Stringer electric shift pinion nut

P/N 22310 Stringer electric shift pinion nut OEM-907866

86330 upper water tube grommet
86330 upper water tube grommet

P/N 86320 4 cylinder lower grommet OEM-310597

86320 4 cylinder lower grommet
86320 4 cylinder lower grommet

P/N 86330 (4, 6 and 8 cylinder) upper water tube grommet OEM 908594

86340

86340 6 and 8 cylinder lower grommet

P/N 86340 (6 and 8 cylinder) lower grommet OEM-909019

31171 Drain screw nylon gaskets
31171 Drain screw nylon gaskets

P/N 31171 Drain screw nylon gaskets (2 units) OEM-3855081-311598
