Yamaha components C-P-E 60hp and C70hp

Yamaha outboard parts *Lower unit drawings

Yamaha components C-P-E 60hp and C70hp

For Models: Yamaha components C-P-E 60hp 1991-2001
T60hp 2003 up and C70hp 1984-2003

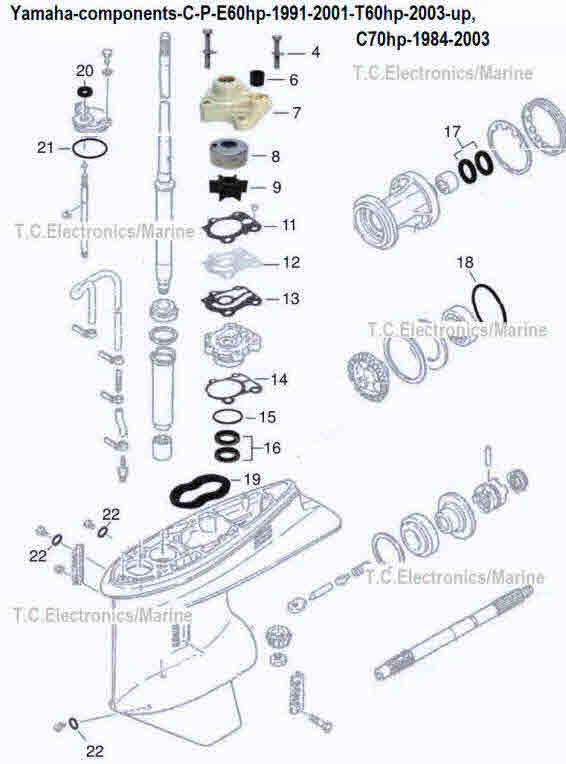

Yamaha outboard parts drawing 60 and 70 hp. engines.
Parts include power-head gaskets, lower unit oil seal, o rings and gaskets.
Water pump repair kit parts including impeller and key.
Magnetic oil pump screw and seal are all so listed as number two.

Yamaha components C/P/E60 hp 1991-2001 T60hp 2003 up C70hp1984-2003

Yamaha components C/P/E60 hp 1991-2001
T60 hp 2003 up C70 hp 1984-2003

12262 water pump kit

12069 without housing

P/N 87828 Seal kit models 225 hp
1997 thru 1999

12262 Item 1 Complete water pump repair kit 61A-W0078-A3 + 61A-44311-00-00
12069 Item 2 Water pump kit with out housing 61A-W0078-A3
12419 Item 3 Water pump housing Kit N/A
89932 Item 4 Water pump impeller Kit N/A
87828 Item 5 Gearcase seal kit 65L-W0001-00-00
84210 Item 6 o-ring 93211-04384-00
85221 Item 7 oil seal 93101-30M17-00
38000 Item 8 Gasket 6E5-44315-A0-00
12511 Item 9 Wear plate 6G5-44323-00-00
89930 Item 10 Impeller 6E5-44352-01-00
12870 Item 11 Pump cup 61A-44322-01-00
21657 Item 12 Washer 90201-22M01-00
21727 Item 13 Spring washer 90206-22M19-00
22199 Item 14 Spacer 61A-45538-00-00
11194 Item 15 Collar 61A-45527-00-00
84295 Item 16 o-ring 93210-86M38-00
12839 Item 17 o-ring 93210-37M67-00
12019 Item 18 Dowel pin (2)
00000 Item 19 Water pump housing
00000 Item 20 Damper, water seal
00000 Item 21 Cover
22504 Item 22 Bolt with washer (4) 90119-08M14-00
85222 Item 23 oil seal 93101-28M16-00
84205 Item 24 o-ring 93210-65752-00
89588 Item 25 oil seal
85223 Item 26 Woodruff key
84215 Item 27 o-ring 93106-09014-00
38015 Item 28 Gasket 90430-08020-00
