Yamaha outboard parts *Lower unit drawings

T.C. Electronics/Marine ( Need the home page please click here )

Yamaha outboard V6 parts drawing *225 hp. *250 hp.

Exploded view lower unit by HP. and years 225 HP. (1994-1996) L 225 HP. (1994-1996) S 225 HP. (1996) 250 HP. (1990-1992 and 1994-1995)

  • Lower unit gasket kit
  • Water pump parts
  • Prop shaft seals

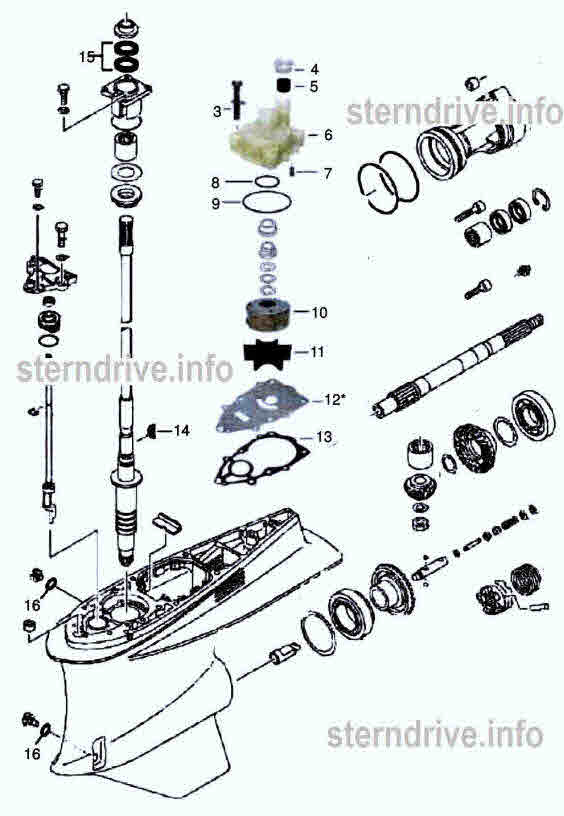

Exploded view lower unit drawings
Search by part number or description here



Item 1

P/N 87842 Lower Unit Gasket Kit 61A-W0001-C1-00



Item 2

P/N 38012 Gasket Exhaust Manifold 61A-41134-A0-00



Item 3

P/N 38013 Gasket Upper Casing 61A-45114-A0-00



Item 4

P/N 38015 Gasket 90430-08020-00



Item 5

P/N 38014 Gasket Muffler 61A-45123-01-00



Item 6

P/N 38300 Damper Water Seal 6E5-44365-00-00



Item 7

P/N 38301 Damper Water Seal 6E5-44366-00-00



Item 8

P/N 84205 0-ring 93210-65752-00



Item 9

P/N 85223 Oil Seal 93106-09014-00



Item 10

P/N 84295 0-ring 93210-86M38-00



Item 11

P/N 84300 0-ring 93210-37M67-00

38000 gasket OEM 6E5-44315-A0-00

38000 gasket OEM 6E5-44315-A0-00

Item 12

P/N 38000 Gasket Water Pump 6E544315A0-00



Item 13

P/N 85222 Oil Seal 93101-28M16-00



Item 14

P/N 84215 0-ring 93210-54534-00



Item 15

P/N 84210 0-ring 93211-04384-00



Item 16

P/N 85221 Oil Seal 93101-30M17-00

12069 Yamaha water pump kit

12069 Yamaha water pump kit

Item 17

P/N 12069 Water pump kit 61A-W)078-A1-00



Item 18

P/N 12870 Insert Cartridge 61A-44322-00-00



Item 19

P/N 84295 0-ring 93210-86M38-00

84300

84300

84295 O ring
84295 O ring

Item 20

P/N 84300 0-ring 93210-37M67-00

89930 outboard impeller

89930 outboard impeller

Item 21

P/N 89930 Impeller 6E5-44352-00-00

12511 Wear plate

12511 Wear plate

Item 22

P/N 12511 Outer Plate, Cartridge 6G5-44323-00-00

gasket

gasket

Item 23

P/N 38000 Gasket Water Pump 6E5-44315-A0-00

12808 Dowel pin

12808 Dowel pin

Item 24

P/N 12808 Pin, Dowel 93606-12019-00

22504 B Washer for bolt

22504 B Washer for bolt

22504 Bolt
22504 Bolt

Item 25

P/N 22504 Bolt With Washer 90119-08M14-00

89588 Woodruff key half moon

89588 Woodruff key half moon

Item 26

P/N 89588 Key Woodruff 90280-04M05-00
