Yamaha drawing *F115 hp. *LF115 hp. *V4 motors

For Models: F115 hp. years 2004 and 2005 LF 115 hp.
Years 2004 and 2005.

  • Yamaha outboard parts drawing F115 and LF115 hp. for V4 engines.
  • Parts include power-head gaskets, lower unit oil seal, o rings and gaskets.
  • Water pump kit parts including impeller and key.
  • Magnetic oil pump screw and seal are all so listed as number two.

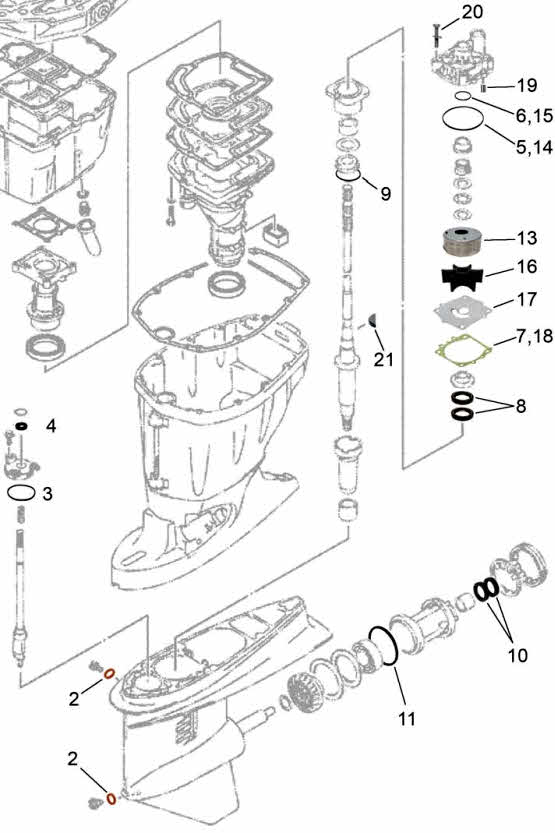

Exploded view lower unit drawings
Search by part number or description here
F-115 LF-115 V4 motors

F-115 LF-115 V4 motors

Item 1. P/N N/A Lower Unit gasket OEM 68V-W0001-21-00
Item 2. P/N 38015 Gasket OEM 90430-06020-00
Item 3. P/N 84240 O ring OEM 93210-58144-00
Item 4. P/N 85223 Oil Seal OEM 93106-09014-00
Item 5. P/N 84295 O ring OEM 93210-86M38-00
Item 6. P/N 84300 O ring OEM 93210-37160-00
Item 7. P/N 38000 Gasket Water Pump OEM 6E5-44315-A0-00
Item 8. P/N 85222 Oil Seal OEM 93101-28M16-00
Item 9. P/N 84215 0-ring OEM 93210-55M14-00
Item 10. P/N 85221 Oil Seal OEM 93101-30M17-00
Item 11. P/N 84250 0-ring OEM 93210-86M39-00
Item 12. P/N
12067 Water pump repair kit OEM 68V-W0078-00-00
Item 13. P/N 12870 Insert Cartridge OEM 61A-44322-02-00
Item 14. P/N 84295 0-ring OEM 93210-86M38-00
Item 15. P/N 84300 0-ring OEM 93210-37160-00
Item 16. P/N 89930
Impellers OEM 6E5-44352-01-00
Item 17. P/N 12518 Outer Plate Cartridge OEM 68V-44323.00-00
Item 18. P/N 38000 Gasket Water Pump OEM 6E5-44315-A0-00
Item 19. P/N 12808 Pin Dowel OEM 93606-12019-00
Item 20. P/N 22504 Bolt With Washer OEM 90119-08M14-00
Item 21. P/N 89588 Key Woodruff OEM 90280-04M05-00
