Yamaha outboard VZ 200 - VZ 300 hp. V6 components

Yamaha outboard lower unit gear-case drawing

  • Lower unit water pump gaskets
  • Water pump housing and impeller parts
  • Bearing carrier o rings

Yamaha lower unit gear-case components for models

  • VZ-200 HP (2005)
    VZ-225 & Z-250 HP (2003-2005)
    VZ-300 HP (2004-2005)

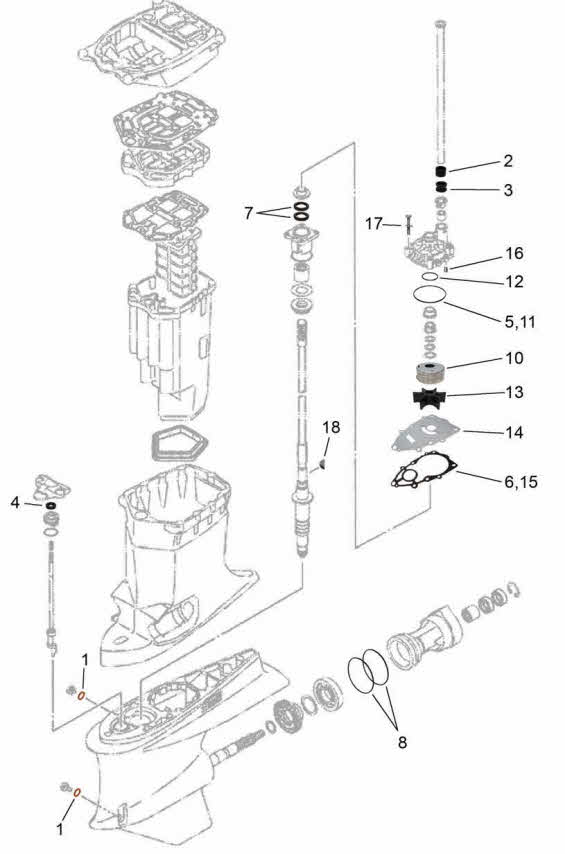

Exploded view lower unit drawings

Search by part number or description here

VZ 200 hp. VZ 300 hp. V6

VZ 200 hp. VZ 300 hp. V6



Item 1

P/N 38015 Gasket 90430-08020-00



Item 2

P/N 38300 Damper Water Seal 6E5-44365-00-00



Item 3

P/N 38301 Damper Water Seal 6E5-44366-00-00



Item 4

P/N 85223 Oil Seal 93106-09014-00



Item 5

P/N 84295 O-ring 93210-86M38-00



Item 6

P/N 38006 Gasket Water Pump 60X-44315-A0-00



Item 7

P/N 85222 Oil Seal 93101-28M16-00



Item 8

P/N 84210 O-ring 93211-04384-00

12068 VZ200 VZ225 VZ250 VZ300 hp
12068 VZ200 VZ225 VZ250 VZ300 hp

Item 9

P/N 12068 water pump repair kit 60X-W078-00-00



Item 10

P/N 12870 Insert Cartridge 61A-44322-02-00



Item 11

P/N 84295 O-ring 93210-86M38-00



Item 12

P/N 84300 0-ring 93210-37160-00

89930 impeller
89930 impeller

Item 13

P/N 89930 Impellers 6E5-44352-01-00



Item 14

P/N 12519 Outer Plate Cartridge 60X-44323-00-00



Item 15

P/N 38006 Gasket, Water Pump 60X-443150-A0-00

12808 Dowel pin
12808 Dowel pin

Item 16

P/N 12808 Pin Dowel 93606-12019-00

22504 Bolts and washers 4 units
22504 Bolts and washers 4 units

Item 17

P/N 22504 Bolt With Washer 90119-08M14-00

89588 Woodruff key half moon
89588 Woodruff key half moon

Item 18

P/N 89588 Key Woodruff 90280-04M05-00
