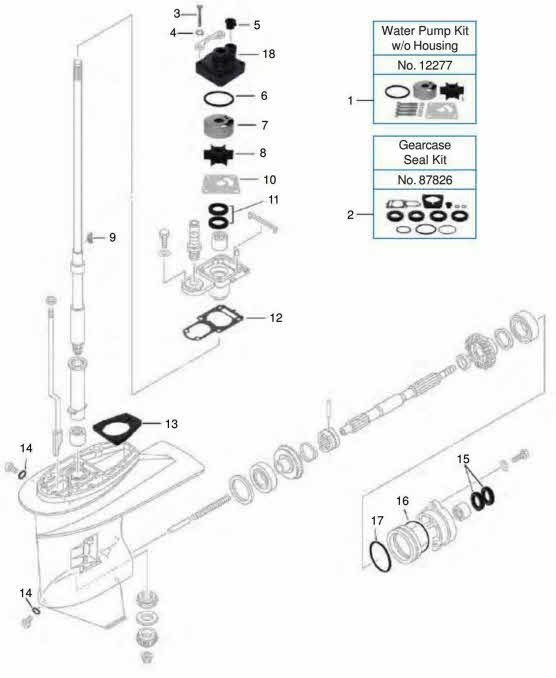

Yamaha outboard drawing 20-25 hp. years 1996-2004

Fits Models: 20 hp. years (1996-1997) and 25 hp. years (1988-1998, 2000-2001 and 2003-2004)

  1. • Included in water pump kit P/N 12277
  2. + Included in water pump kit P/N 87826

Yamaha outboard parts 20-25 hp.

Yamaha outboard parts 20-25 hp.

12277 Yamaha 20-25 hp water pump kit

12277 Yamaha 20-25 hp water pump kit

Item 1

P/N 12277 OEM 61-2-W0078-00 Water Pump kit with out housing

87826 seal kit

87826 seal kit

Item 2

P/N 87826 OEM 6L2-W0001-C3 Gear-case seal kit



Item 3

P/N 22428 OEM 97095-06040 Bolt (4)



Item 4

P/N 21490 OEM 92990-06600-00 Washer (4)



Item 5

+
P/N 38304 OEM 61-2-44367-00 Damper, Water Seal (Grommet)



Item 6

• +
P/N 84310 OEM 93210-45161 O ring



Item 7

P/N 12866 OEM 61-2-44322-00 Pump Cup



Item 8

P/N 89622 OEM 61-2-44352-00 Impeller



Item 9

P/N 89587 OEM 90280-03024 Key, woodruff



Item 10

P/N 12508 OEM 61-2-44323-00 Wear Plate



Item 11

+
P/N 85232 OEM 93102-20484 Oil Seal, D/S



Item 12

+
P/N 38041 OEM 61-2-45315-A0 Gasket, Lower gear-case



Item 13

+
P/N 38040 OEM 61-2-41134-00 Gasket, Exhaust Manifold



Item 14

+
P/N 38015 OEM 90430-08020 Gasket, Drain Fill



Item 15

+
P/N 85231 OEM 93101-20M07 Oil Seal, P/S



Item 16

-i-
P/N 84280 OEM 9321 0-60M99 O ring



Item 17

+
P/N 84275 OEM 93210-60MA3 O ring



Item 18

P/N 12455 OEM 61 2-44311-00-00 Water Pump housing
