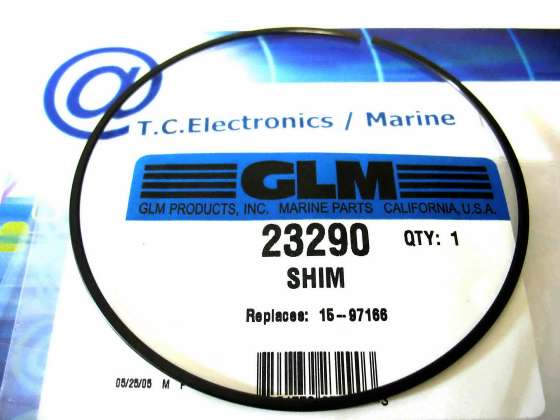

Mercruiser shim is used for reverse bearing thrust ring in lower unit

  • GLM marine #23290
  • OEM # 15-97166
  • Shim is used for reverse bearing thrust ring
W 23290 Mercruiser outdrive shim.jpg
23290 Mercruiser outdrive shim

$4.29

Please see lower gearcase drawing parts number 55
