Mercruiser lower unit shift shaft gasket washers

  • GLM marine aftermarket number # 30010 made from rubber material
  • OEM # 12-31266
  • Aftermarket Mercruiser gasket washers used to support upper gearcase shift shaft

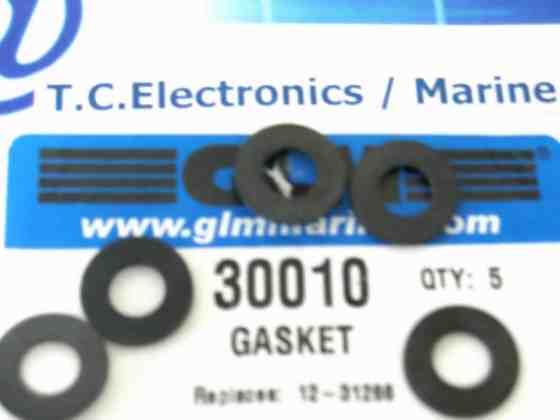

W-30010 Mercruiser outdrive gasket.jpg
30010 Mercruiser outdrive gasket

$4.29
