Johnson outboard layout type M V4-V6 large case 2002-2006

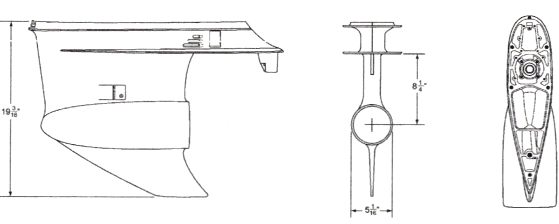

Evinrude / Johnson type "M" V4 and V6 large gearcase lower unit identification for years 2002 to 2006

  • Physical characteristics 19 3/16 inches tall with 5-1/16 inch rear hub
  • Curved at the trailing end of the gear housing and the fin
  • Flat at the trailing end of the cavitation plate
  • Three slots above the cavitation plate
  • External water intake screens includes speedo pilot
  • Johnson outboard V4 or V6 type M parts and drawings years 2002 to 2006

Johnson exploded view outboard lower unit drawings
Search by part number or description here
 large gearcase identification

large gearcase identification

V4-V6 M 2002-2006 exploded drawing

V4-V6 M 2002-2006 exploded drawing
