Physical characteristics 2-3 cylinder loopcharged small case

Evinrude/Johnson outboard parts illustrated drawing
2 and 3 Cylinder loopcharged small gearcase
Old style lower unit years 1975 to 1988

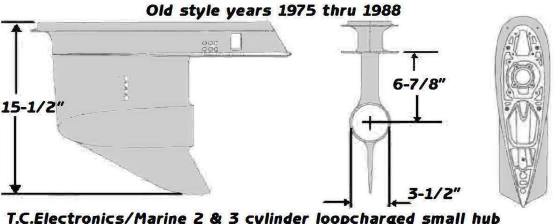

  • Physical characteristics 15 1/2 inches tall and 3-1/2 inch hub
  • Straight at the trailing end of the gear housing and the fin pointed at the trailing end of the cavitation plate that,s 6-7/8 inches from prop shaft center
  • 6 holes above the cavitation plate and internal water intake screens (four holes) with no speedo pitot

Evinrude/Johnson outboard parts for 2 cylinder 40 to 60 horsepower and 3 cylinder 60 to 75 horsepower loopcharged small gearcase years 1975 to 1988 Click Here

Click on drawing illustration below for exploded view tech drawing that will show 49 internal parts & photo,s

Johnson / Evinrude parts drawing

Johnson / Evinrude parts drawing
