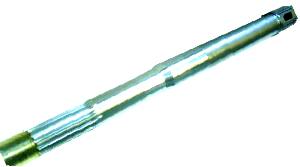

Evinrude/Johnson outboard propeller shaft application

Application chart with hp. and year

  • GLM Marine aftermarket propeller shaft application chart
  • Evinrude/Johnson outboard parts model/year
  • 4 cylinder, V6 and other models
  • Outboard lower unit prop shaft year-horsepower
  • Johnson drawings

 application guide

application guide

Hp, Year and Propeller shaft model number

85 1977 - 1980 22416
85 TTL 1991 to 1995 22416
88 1987 to 1996 22416
90 1981 - 1990 22416
90 1992- 1997 22416
90 20"
60 V 1995 - 1996 - 90 25"
60 V 1995 - 1996 22417 90
60 V 1997 22416 100 1979 - 1980 22416
100 1991 - 1994 22416
100 Commercial S Model 1989 - 1990 22416
100 Commercial 1991 22417
100 Commercial 1992 - 1997 22417
110 1986 - 1989 22416
112 1994 - 1996 22416
115 1977 - 1985 22416
115 1990 - 1997 22416
115 20", 60 V 1995 - 1996 N/A
115 25", 60 V 1995 - 1996 22417
115 60 V 1997 22416
120 1986 - 1993 22416
120 F Suffix only 1993 22417
120 TL 1994 22416
120 TX 1994 22417
125 Commercial ESX 1989 - 1990 22416
125 Commercial 1991 - 1995 22417
125 1992 - 1994 22416 125 F Suffix only 1993 N/A
130 1995 - 1997 22417
140 1977 - 1984 22416
140 1986 - 1988 22416
140 TL 1990 - 1994 22416
140 TX 1992 - 1994 22417
150 1990 - 1997 22417
150 Commercial 1993 - 1995 22417
155 Commercial 1990 22414
155 Commercial WTP only 1990 22414
155 Commercial 1991 22417
155 Commercial 1992 22417
175 1990 - 175 1992 - 1997 22417
185 1990 22414
185 1992 - 1994 22417
200 1990 - 1997 22417
200 Commercial 1990 N/A
225 1990 22414
225 1991 - 1997 22417
250 1991 - 1995 22417
250 1997 22417
300 1990 N/A
300 1991 - 1995 22417
